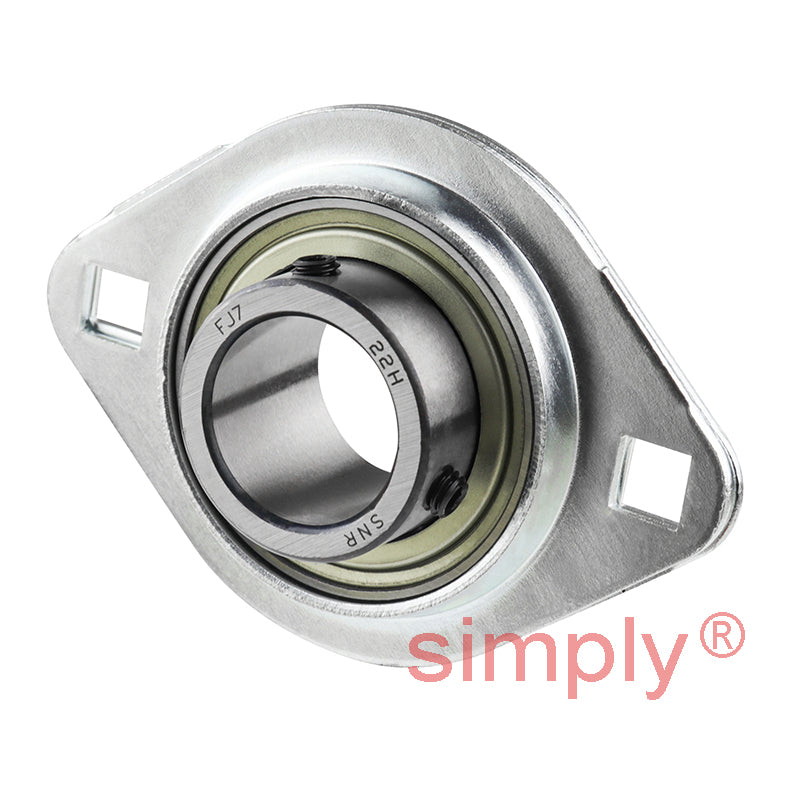

• SNR USPFL208 Oval 2 Bolt Pressed Steel Bearing Housing with 40mm Insert - Allow 2-3 Days
  • SNR
1 2

SKU: USPFL208-SNR

SNR USPFL208 Oval 2 Bolt Pressed Steel Bearing Housing with 40mm Insert - Allow 2-3 Days

SNR USPFL208 Oval 2 Bolt Pressed Steel Bearing Housing with 40mm Insert - Allow 2-3 Days
$34.15 ex VAT
$34.15 ex VAT
Sale Sold out

In stock

Price Break
3+ $22.88
4+ $21.59
9+ $21.33
19+ $21.08
49+ $20.82
99+ $20.56
499+ $19.28
999+ $19.02
1999+ $18.76
2999+ $18.51
4999+ $17.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
USPFL
Bolt Hole Centres:
7mm
Technical

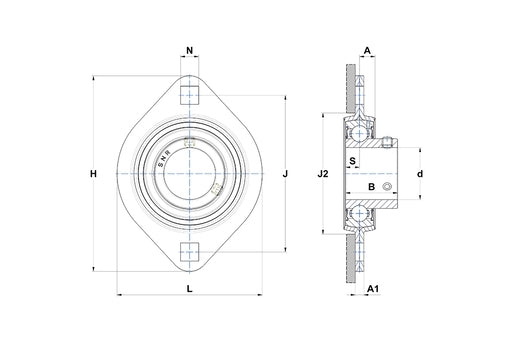

--- Dimensions
Shaft diameter d 40mm
A 11.5mm
A1 7mm
A2 25mm
B 34mm
H 151mm
J 119mm
L 100mm
N 13.5mm
S 9mm
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 0.95 kg
