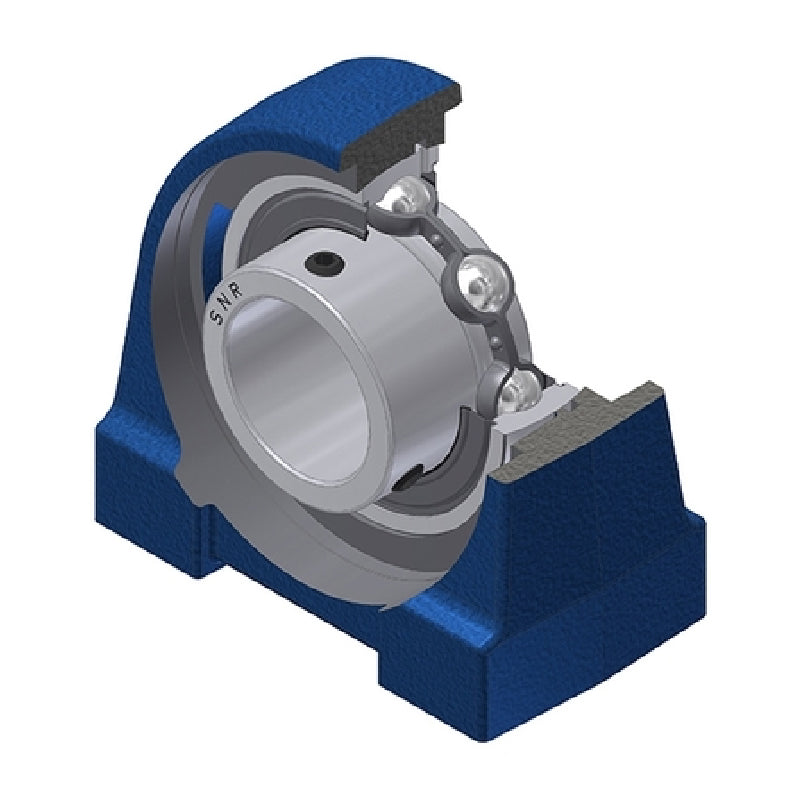

• SNR USPG201N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 12mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: USPG201N-SNR

SNR USPG201N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 12mm Bore Insert - Allow 2-3 Days

SNR USPG201N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 12mm Bore Insert - Allow 2-3 Days
$69.16 ex VAT
$69.16 ex VAT
Sale Sold out

In stock

Price Break
3+ $46.33
4+ $43.72
9+ $43.20
19+ $42.68
49+ $42.16
99+ $41.64
499+ $39.04
999+ $38.52
1999+ $38.00
2999+ $37.48
4999+ $36.44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
12mm
Style:
USPG
Bolt Hole Centres:
38mm
Technical

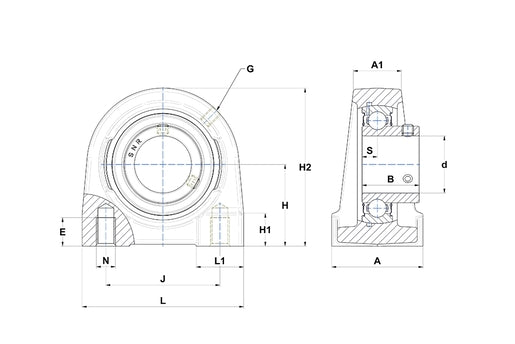

--- Dimensions
Shaft diameter 12mm
A 30mm
A1 13mm
B 22mm
E 13mm
H 30.2mm
H1 14mm
H2 57mm
J 38mm
L 55mm
L1 17mm
N M6
S 6mm
G M6x1
--- Load rating
Dynamic load C 9.55 kN
Static load C0 4.78 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 3.5 Nm
Mass 0.31 kg
