SKU: USPG202-SNR

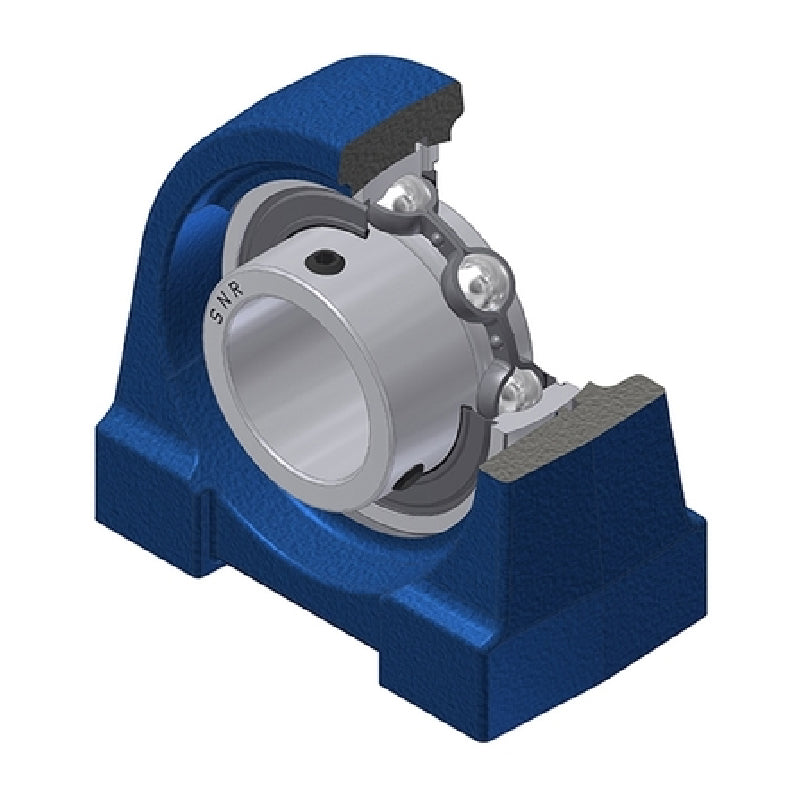

SNR USPG202 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 15mm Bore Insert - Allow 2-3 Days
SNR USPG202 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 15mm Bore Insert - Allow 2-3 Days
Regular price
$53.00
ex VAT
Regular price
Sale price
$53.00
ex VAT
In stock
Price Break
3+
$39.48
4+
$37.89
9+
$37.09
19+
$35.89
49+
$35.09
99+
$33.10
499+
$27.92
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
USPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 15mm
- Style:
- USPG
- Bolt Hole Centres:
- 38mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 15mm |
| A | 30mm |
| A1 | 13mm |
| B | 22mm |
| E | 13mm |
| H | 30.2mm |
| H1 | 14mm |
| H2 | 57mm |
| J | 38mm |
| L | 55mm |
| L1 | 17mm |
| N | M6 |
| S | 6mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.5 Nm |
| Mass | 0.3 kg |
