• SNR USPG205CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 25mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: USPG205CO-SNR

SNR USPG205CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 25mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR USPG205CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 25mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
$117.79 ex VAT
$117.79 ex VAT
Sale Sold out

In stock

Price Break
3+ $87.75
4+ $84.21
9+ $82.44
19+ $79.78
49+ $78.00
99+ $73.57
499+ $62.05
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

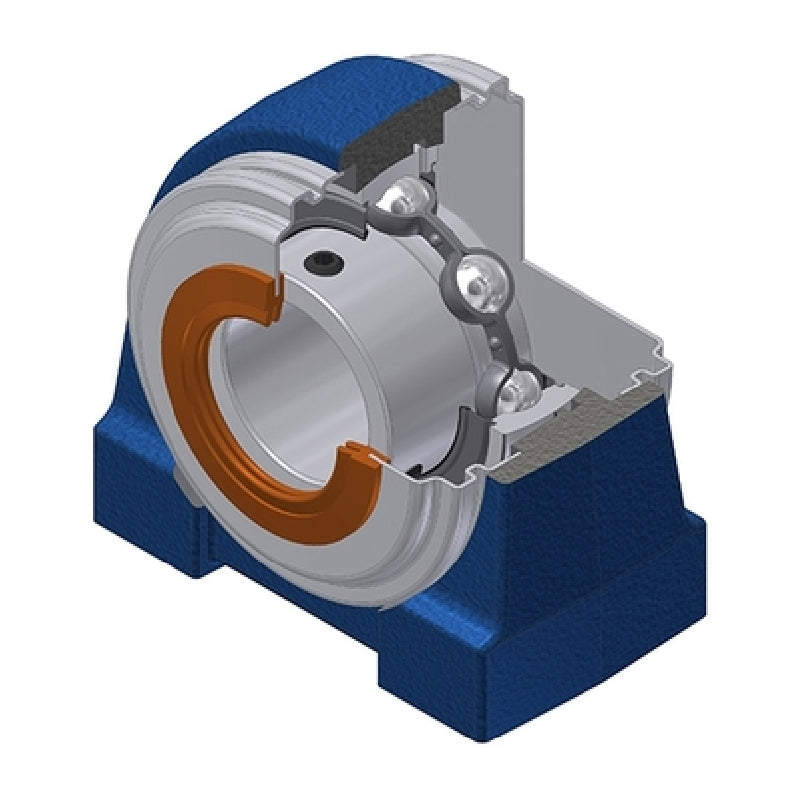

USPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
USPG
Bolt Hole Centres:
50mm
Technical
--- Dimensions
Shaft diameter 25mm
A 38mm
A1 25mm
B 27mm
E 18mm
H 36.5mm
H1 15mm
H2 70mm
J 50mm
L 75mm
L1 25mm
N M10
S 7.5mm
Dz 60mm
Z 48.3mm
G M6x1
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.638 kg
