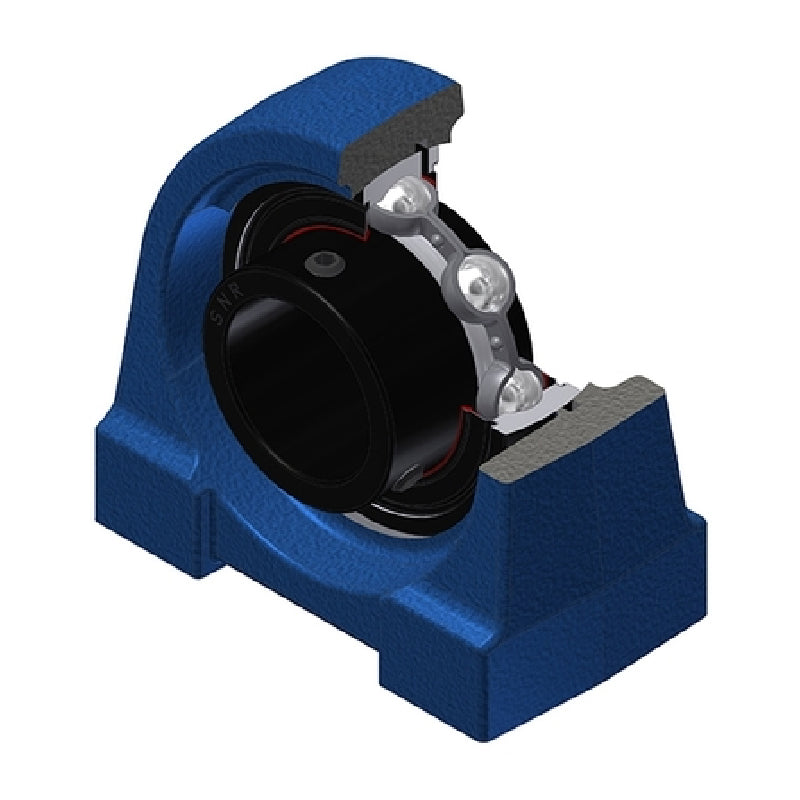

• SNR USPG206T20 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 30mm Bore Insert Wide Temperature Version - Allow 2-3 Days
1 1

SKU: USPG206T20-SNR

SNR USPG206T20 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 30mm Bore Insert Wide Temperature Version - Allow 2-3 Days

SNR USPG206T20 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 30mm Bore Insert Wide Temperature Version - Allow 2-3 Days
$103.00 ex VAT
$103.00 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.73
4+ $73.63
9+ $72.08
19+ $69.76
49+ $68.21
99+ $64.33
499+ $54.26
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
USPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
USPG
Bolt Hole Centres:
60mm
Technical
--- Dimensions
Shaft diameter 30mm
A 48mm
A1 25mm
B 30mm
E 18mm
H 42.9mm
H1 17mm
H2 83mm
J 60mm
L 85mm
L1 25mm
N M10
S 8mm
G M6x1
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Recommended tightening torque for set screw 5.5 Nm
Mass 1.07 kg
