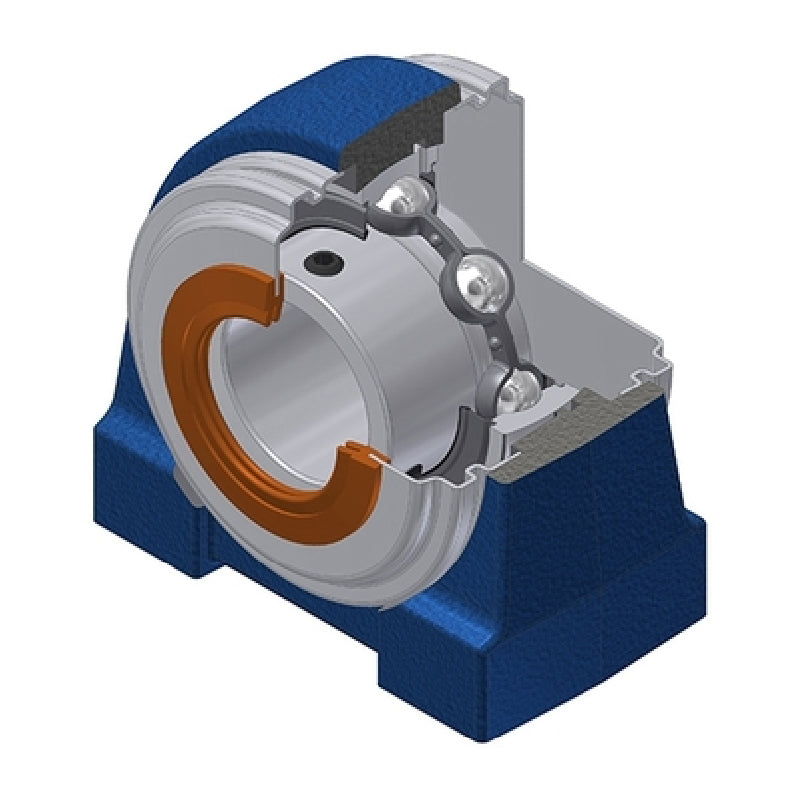

• SNR USPG207CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 35mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: USPG207CO-SNR

SNR USPG207CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 35mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR USPG207CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 35mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
$117.74 ex VAT
$117.74 ex VAT
Sale Sold out

In stock

Price Break
3+ $87.71
4+ $84.17
9+ $82.40
19+ $79.74
49+ $77.97
99+ $73.54
499+ $62.02
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
USPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
USPG
Bolt Hole Centres:
68mm
Technical
--- Dimensions
Shaft diameter 35mm
A 48mm
A1 27mm
B 32mm
E 22mm
H 47.6mm
H1 20mm
H2 93mm
J 68mm
L 100mm
L1 35mm
N M12
S 8.5mm
Dz 80mm
Z 59.9mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 1.532 kg
