• SNR USPG210CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 50mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: USPG210CO-SNR

SNR USPG210CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 50mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR USPG210CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 50mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
$132.54 ex VAT
$132.54 ex VAT
Sale Sold out

In stock

Price Break
3+ $98.74
4+ $94.75
9+ $92.76
19+ $89.77
49+ $87.77
99+ $82.78
499+ $69.82
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

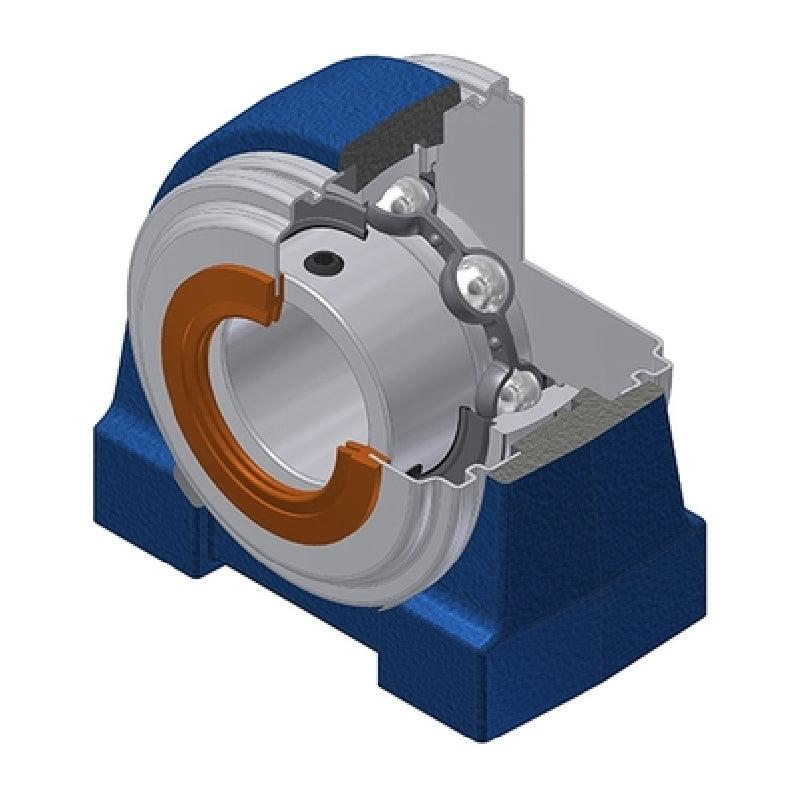

USPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
USPG
Bolt Hole Centres:
95mm
Technical
--- Dimensions
Shaft diameter 50mm
A 60mm
A1 35mm
B 43.5mm
E 25mm
H 57.2mm
H1 21mm
H2 114mm
J 95mm
L 135mm
L1 40mm
N M16
S 10.9mm
Dz 100mm
Z 76.1mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.874 kg
