SKU: USPG211N-SNR

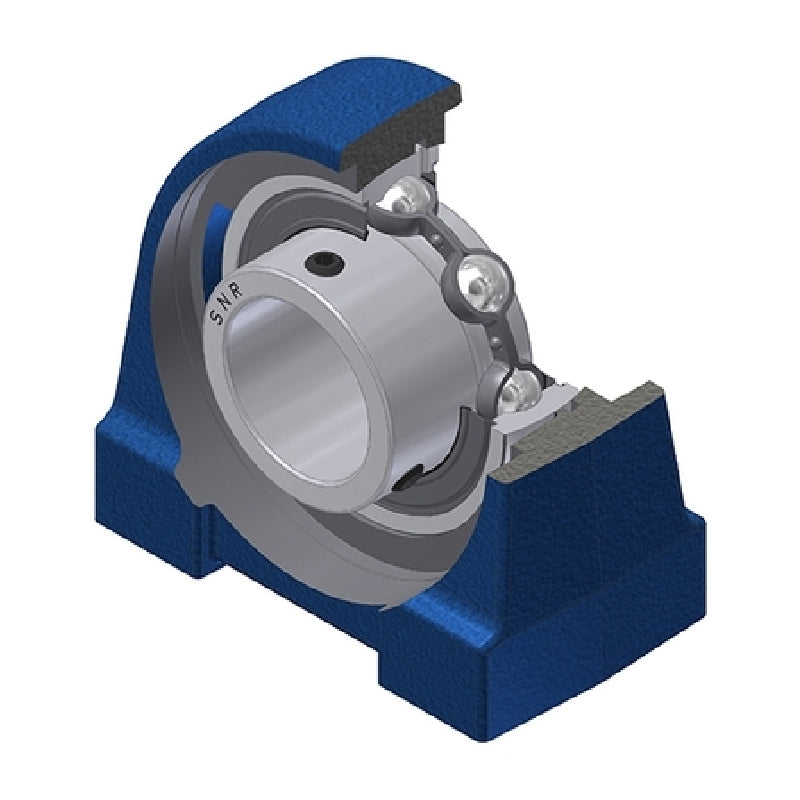

SNR USPG211N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days
SNR USPG211N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days
Regular price
$117.73
ex VAT
Regular price
Sale price
$117.73
ex VAT
In stock
Price Break
3+
$87.70
4+
$84.16
9+
$82.39
19+
$79.73
49+
$77.96
99+
$73.53
499+
$62.01
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
USPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- USPG
- Bolt Hole Centres:
- 100mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 55mm |
| A | 60mm |
| A1 | 34mm |
| B | 45.3mm |
| E | 25mm |
| H | 63.5mm |
| H1 | 25mm |
| H2 | 126mm |
| J | 100mm |
| L | 140mm |
| L1 | 40mm |
| N | M16 |
| S | 11.8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.27 kg |
