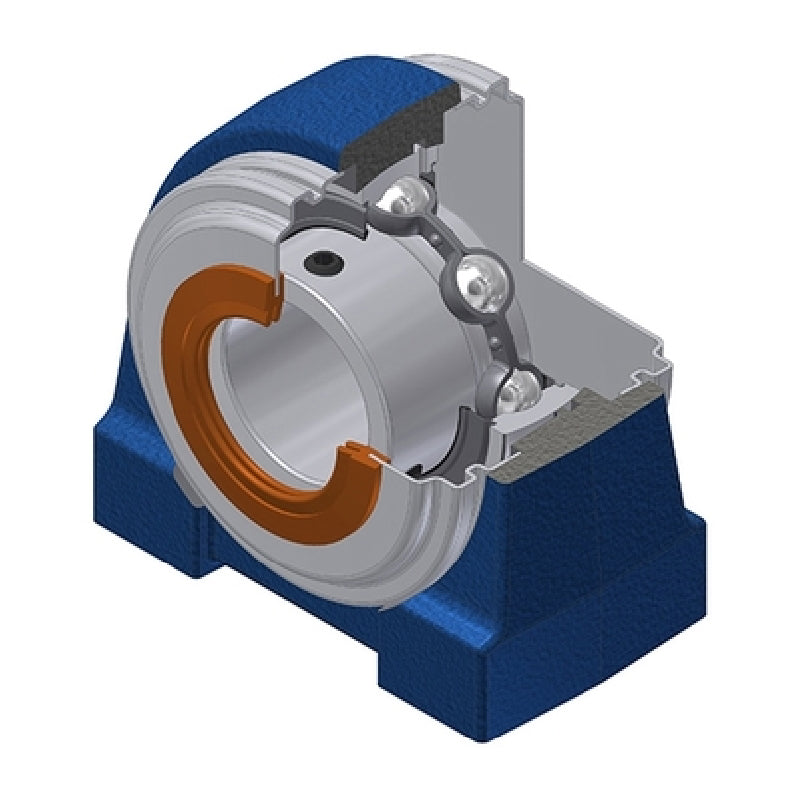

• SNR USPG212CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 60mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: USPG212CC-SNR

SNR USPG212CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 60mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR USPG212CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 60mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
$176.78 ex VAT
$176.78 ex VAT
Sale Sold out

In stock

Price Break
3+ $131.70
4+ $126.38
9+ $123.72
19+ $119.73
49+ $117.07
99+ $110.41
499+ $93.12
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
USPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
60mm
Style:
USPG
Bolt Hole Centres:
105mm
Technical
--- Dimensions
Shaft diameter 60mm
A 70mm
A1 40mm
B 53.7mm
E 25mm
H 69.8mm
H1 25mm
H2 138mm
J 105mm
L 150mm
L1 50mm
N M16
S 14.9mm
Dz 120mm
Z 91.3mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 4.53 kg
