SKU: USPH205-SNR

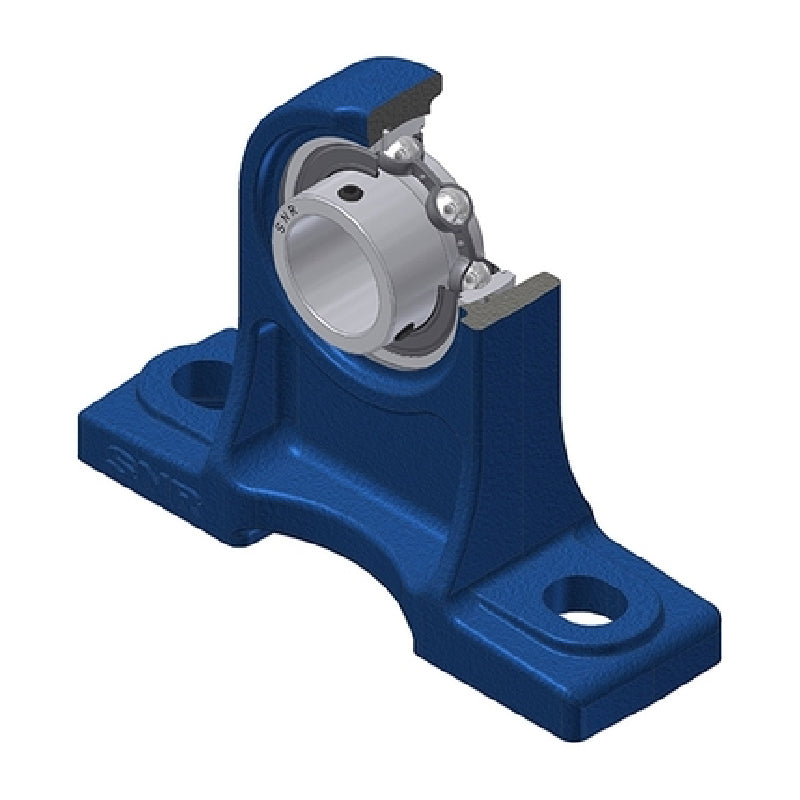

SNR USPH205 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 25mm Bore Insert - Allow 2-3 Days
SNR USPH205 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 25mm Bore Insert - Allow 2-3 Days
Regular price
$35.32
ex VAT
Regular price
Sale price
$35.32
ex VAT
In stock
Price Break
3+
$26.31
4+
$25.25
9+
$24.72
19+
$23.92
49+
$23.39
99+
$22.06
499+
$18.61
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
USPH200 Series 2 Bolt Cast Iron High Centre Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- USPH
- Bolt Hole Centres:
- 27mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 25mm |
| A | 50mm |
| A1 | 24mm |
| B | 27mm |
| H | 80mm |
| H1 | 16mm |
| H2 | 114mm |
| J | 105mm |
| L | 140mm |
| L1 | 50mm |
| N | 13mm |
| N1 | 19mm |
| S | 7.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 1.17 kg |
