SKU: USPH207N-SNR

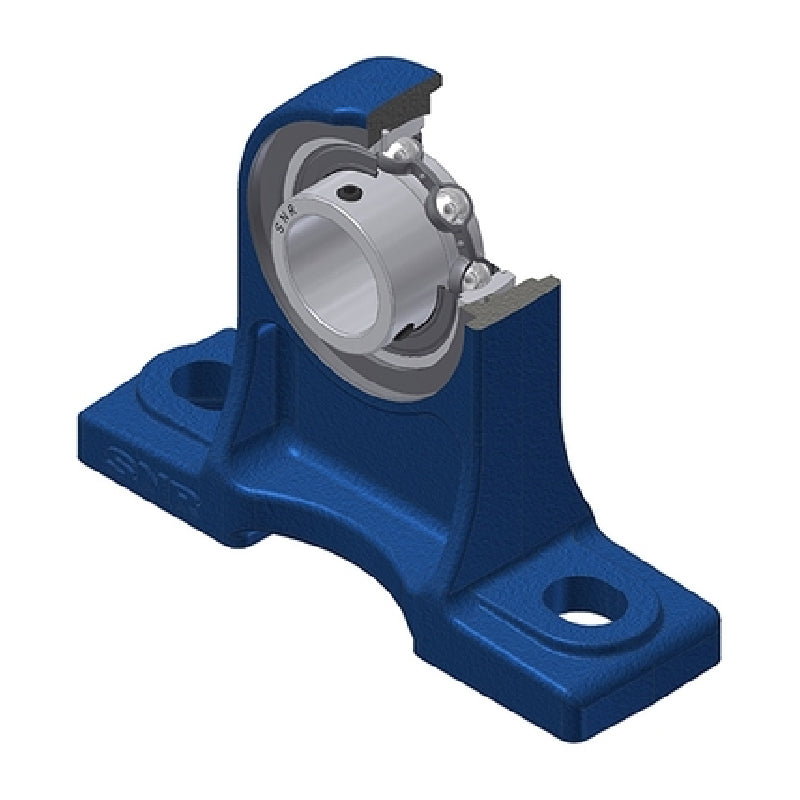

SNR USPH207N Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert - Allow 2-3 Days

SNR USPH207N Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert - Allow 2-3 Days
Regular price $88.38 ex VAT
Regular price Sale price $88.38 ex VAT
Sale Sold out

In stock

Price Break
3+ $65.84
4+ $63.18
9+ $61.85
19+ $59.86
49+ $58.53
99+ $55.20
499+ $46.56
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 35mm
A 60mm
A1 30mm
B 32mm
H 95mm
H1 19mm
H2 140mm
J 127mm
L 167mm
L1 56mm
N 17mm
N1 21mm
S 8.5mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 2.12 kg
