SKU: USPH208N-SNR

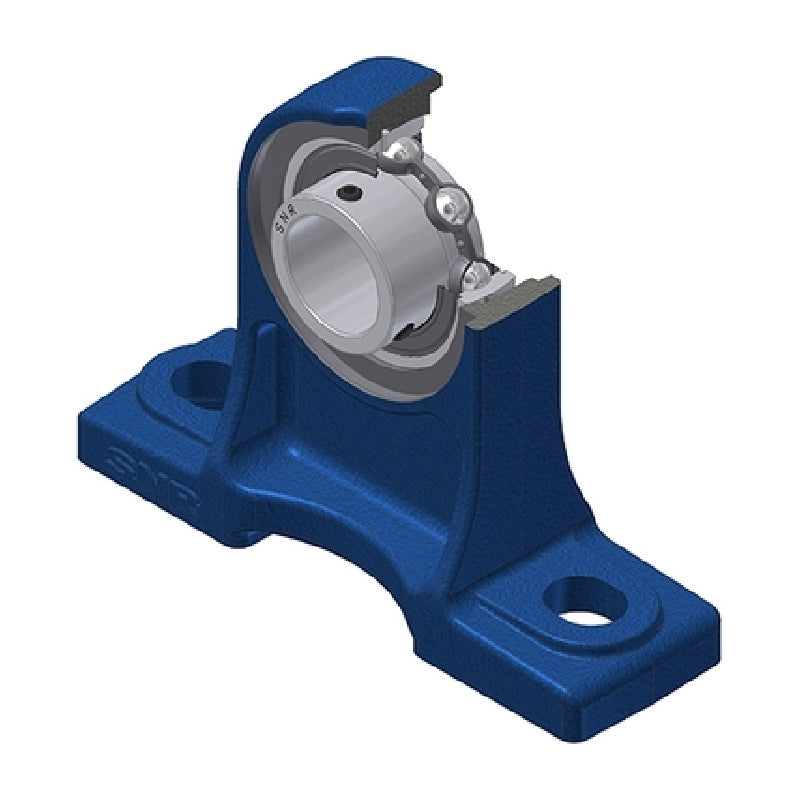

SNR USPH208N Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert - Allow 2-3 Days

SNR USPH208N Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert - Allow 2-3 Days
Regular price $103.03 ex VAT
Regular price Sale price $103.03 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.75
4+ $73.65
9+ $72.10
19+ $69.78
49+ $68.23
99+ $64.35
499+ $54.27
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 40mm
A 70mm
A1 34mm
B 34mm
H 100mm
H1 19mm
H2 149mm
J 137mm
L 184mm
L1 58mm
N 17mm
N1 25mm
S 9mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.7 kg
