SKU: USPH210-SNR

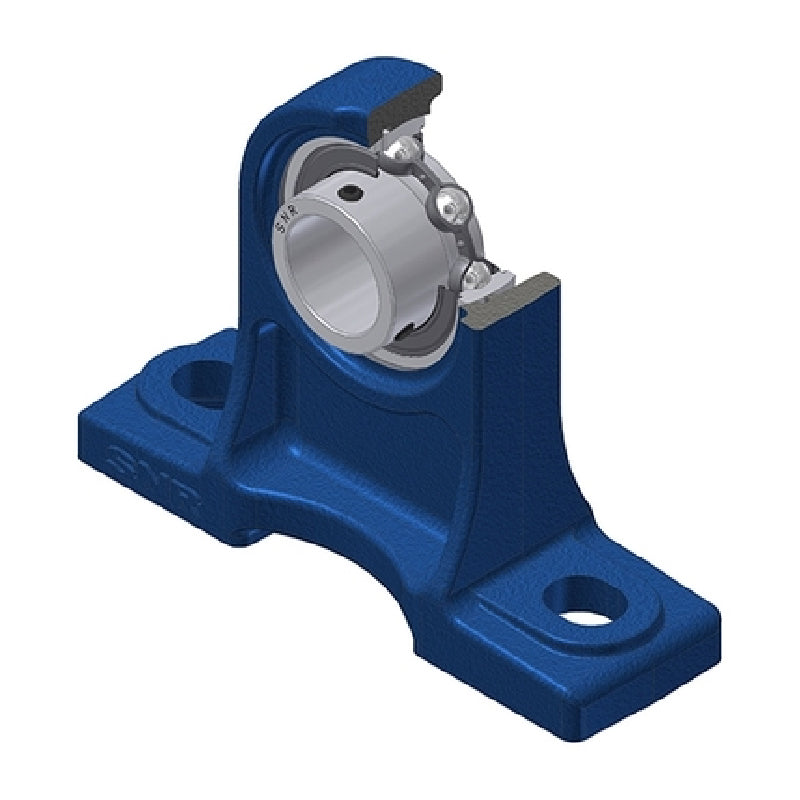

SNR USPH210 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days

SNR USPH210 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days
Regular price $73.62 ex VAT
Regular price Sale price $73.62 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.85
4+ $52.63
9+ $51.52
19+ $49.86
49+ $48.75
99+ $45.98
499+ $38.78
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 50mm
A 70mm
A1 36mm
B 43.5mm
H 110mm
H1 22mm
H2 165mm
J 159mm
L 206mm
L1 65mm
N 20mm
N1 25mm
S 10.9mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 3.56 kg
