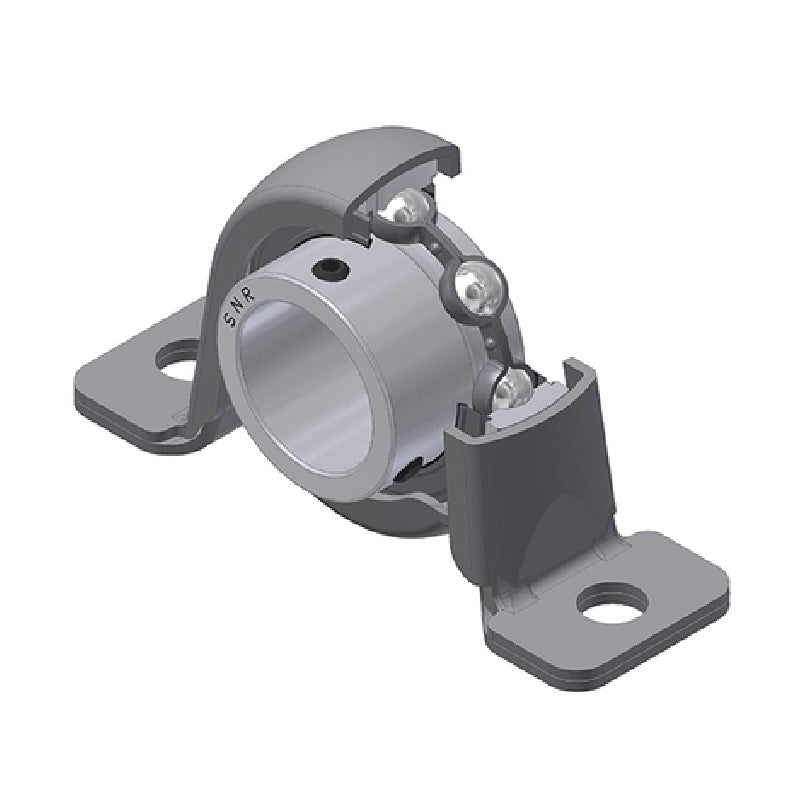

• SNR USPP201 Metric Pressed Steel Two Bolt Plummer Block Housing with 12mm Insert - Allow 2-3 Days
  • SNR
1 2

SKU: USPP201-SNR

SNR USPP201 Metric Pressed Steel Two Bolt Plummer Block Housing with 12mm Insert - Allow 2-3 Days

SNR USPP201 Metric Pressed Steel Two Bolt Plummer Block Housing with 12mm Insert - Allow 2-3 Days
$16.37 ex VAT
$16.37 ex VAT
Sale Sold out

In stock

Price Break
3+ $10.97
4+ $10.35
9+ $10.23
19+ $10.10
49+ $9.98
99+ $9.86
499+ $9.24
999+ $9.12
1999+ $8.99
2999+ $8.87
4999+ $8.63

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
12mm
Style:
USPP
Bolt Hole Centres:
68mm
Technical

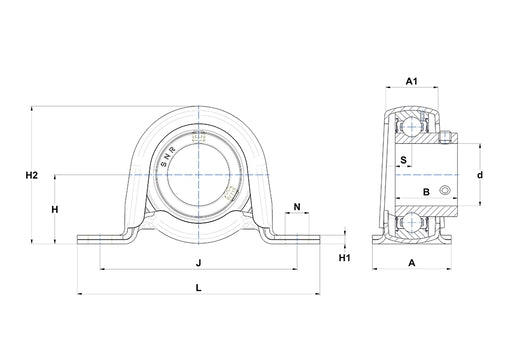

--- Dimensions
Shaft diameter d 12mm
A 25.4mm
A1 15.9mm
B 22mm
H 22.2mm
H1 2.4mm
H2 43.2mm
J 68mm
L 85.7mm
N 9mm
S 6mm
--- Load rating
Dynamic load C 9.55 kN
Static load C0 4.78 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 3.5 Nm
Mass 0.15 kg
