SKU: USPP202-SNR

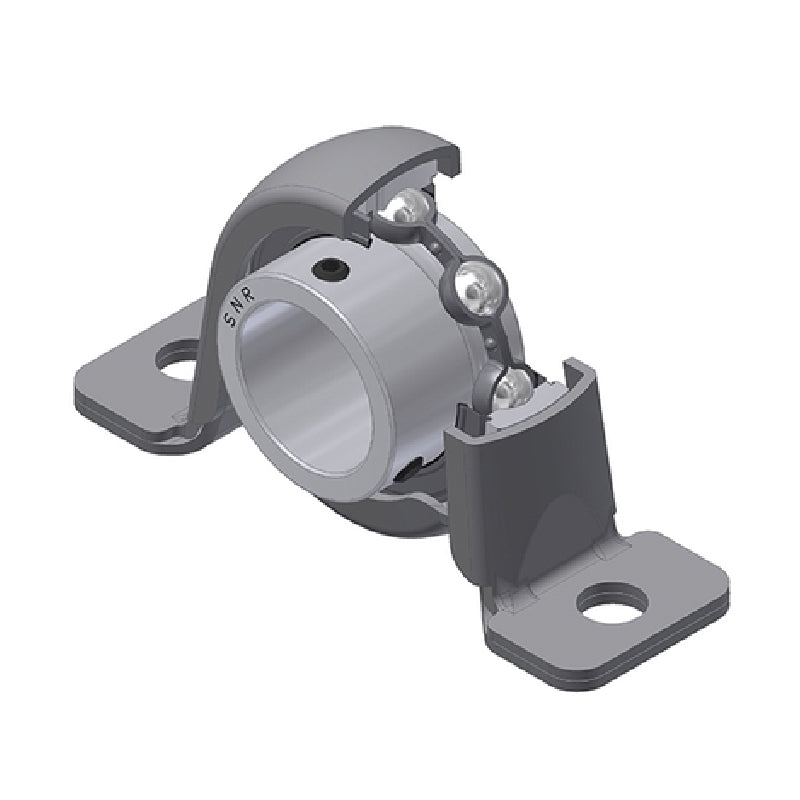

SNR USPP202 Metric Pressed Steel Two Bolt Plummer Block Housing with 15mm Insert - Allow 2-3 Days

Name: SNR USPP202 Metric Pressed Steel Two Bolt Plummer Block Housing with 15mm Insert - Allow 2-3 Days
Brand: SNR
SKU: USPP202-SNR
Price: 16.37 USD
Availability: InStock

$16.37 ex VAT

Sale Sold out

In stock

Price Break

3+ $10.97

4+ $10.35

9+ $10.23

19+ $10.10

49+ $9.98

99+ $9.86

499+ $9.24

999+ $9.12

1999+ $8.99

2999+ $8.87

4999+ $8.63

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: SNR - High Quality
Inside Diameter:: 15mm
Style:: USPP
Bolt Hole Centres:: 68mm

Technical

---	Dimensions
Shaft diameter d	15mm
A	25.4mm
A1	15.9mm
B	22mm
H	22.2mm
H1	2.4mm
H2	43.2mm
J	68mm
L	85.7mm
N	9mm
S	6mm
---	Load rating
Dynamic load C	9.55 kN
Static load C0	4.78 kN
---	Unit information
Operating temperature min.	-20°C
Operating temperature max.	100°C
Recommended tightening torque for set screw	3.5 Nm
Mass	0.14 kg
