• SNR USPP204 Metric Pressed Steel Two Bolt Plummer Block Housing with 20mm Insert - Allow 2-3 Days
  • SNR
1 2

SKU: USPP204-SNR

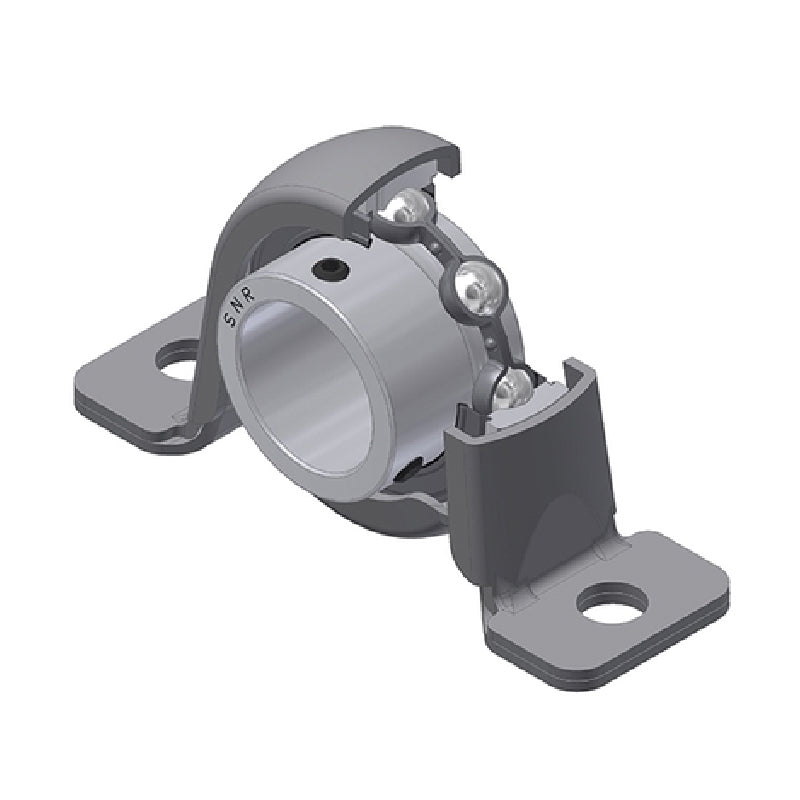

SNR USPP204 Metric Pressed Steel Two Bolt Plummer Block Housing with 20mm Insert - Allow 2-3 Days

SNR USPP204 Metric Pressed Steel Two Bolt Plummer Block Housing with 20mm Insert - Allow 2-3 Days
$19.64 ex VAT
$19.64 ex VAT
Sale Sold out

In stock

Price Break
3+ $13.15
4+ $12.42
9+ $12.27
19+ $12.12
49+ $11.97
99+ $11.82
499+ $11.08
999+ $10.94
1999+ $10.79
2999+ $10.64
4999+ $10.35

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
20mm
Style:
USPP
Bolt Hole Centres:
76mm
Technical
--- Dimensions
Shaft diameter d 20mm
A 31.7mm
A1 21.6mm
B 25mm
H 25.4mm
H1 2.4mm
H2 49.9mm
J 76mm
L 98.4mm
N 9mm
S 7mm
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.22 kg
