SKU: USSP201N-SNR

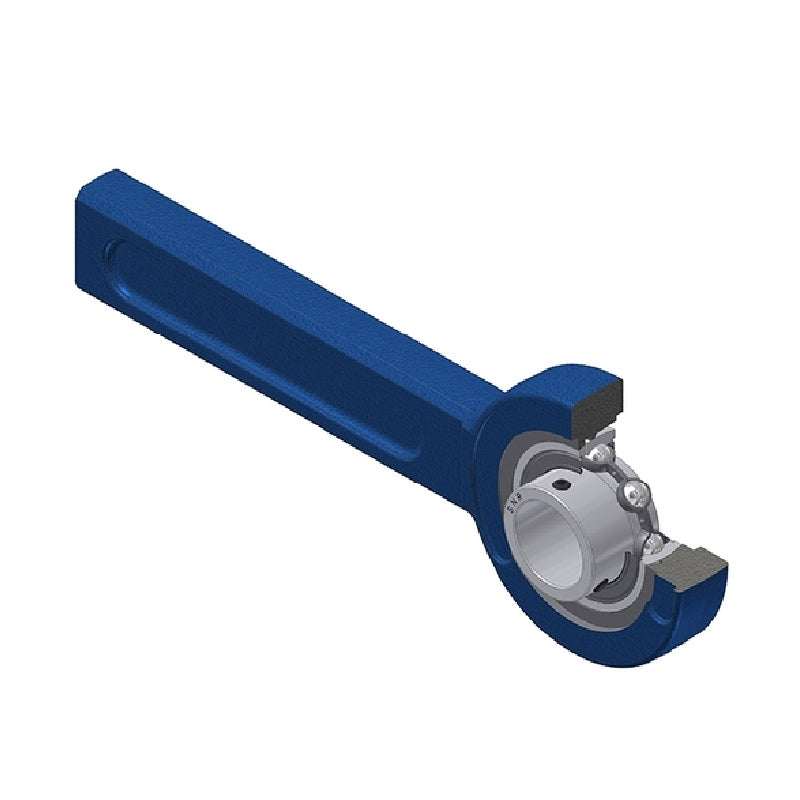

SNR USSP201N Metric Cast Iron Tensioner Unit with 12mm Bore Insert - Allow 2-3 Days

SNR USSP201N Metric Cast Iron Tensioner Unit with 12mm Bore Insert - Allow 2-3 Days
Regular price $132.49 ex VAT
Regular price Sale price $132.49 ex VAT
Sale Sold out

In stock

Price Break
3+ $98.70
4+ $94.72
9+ $92.72
19+ $89.73
49+ $87.74
99+ $82.75
499+ $69.79
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

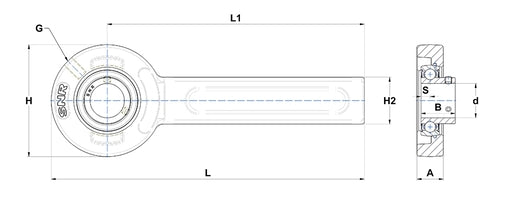

--- Dimensions
Shaft diameter 12mm
A 21mm
B 22mm
H 78mm
H2 41mm
L 264mm
L1 225mm
S 6mm
G R1/8″
--- Load rating
Dynamic load C 9.55 kN
Static load C0 4.78 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Stretcher frame 2 SPR11
Stretcher frame 3 SPR12
Stretcher frame 4 SPR14
Mass 1.59 kg
