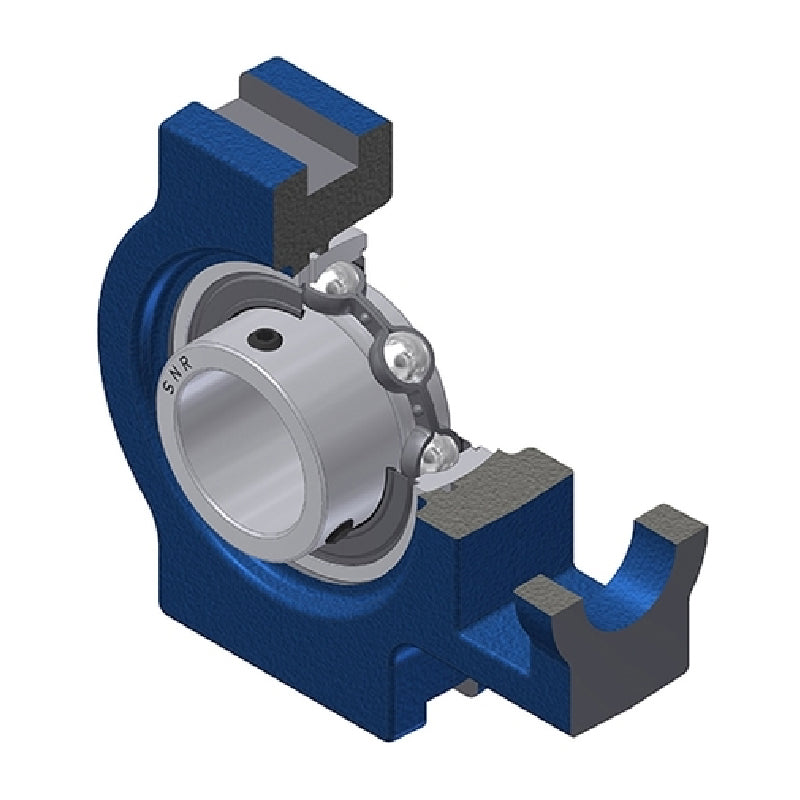

SNR UST207-23 Imperial Cast Iron Take Up Unit with 1-7/16 inch Bore Bearing Unit - Allow 2-3 Days
SNR UST207-23 Imperial Cast Iron Take Up Unit with 1-7/16 inch Bore Bearing Unit - Allow 2-3 Days
Regular price
$52.97
ex VAT
Regular price
Sale price
$52.97
ex VAT
In stock
Price Break
3+
$39.46
4+
$37.87
9+
$37.07
19+
$35.87
49+
$35.08
99+
$33.08
499+
$27.90
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UST200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 36.49mm = 1.436 (1-7/16) inch
- Style:
- UST
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1-7/16 inch |
| A | 37mm |
| A1 | 12mm |
| A2 | 30mm |
| B | 32mm |
| H | 102mm |
| H1 | 89mm |
| H2 | 64mm |
| L | 129mm |
| L1 | 78mm |
| L2 | 13mm |
| L3 | 64mm |
| N | 22mm |
| N1 | 16mm |
| N2 | 37mm |
| S | 8.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.47 kg |
