• SNR UST207 Metric Cast Iron Take Up Unit with 35mm Bore Bearing Unit
  • SNR
1 2

SKU: UST207-SNR

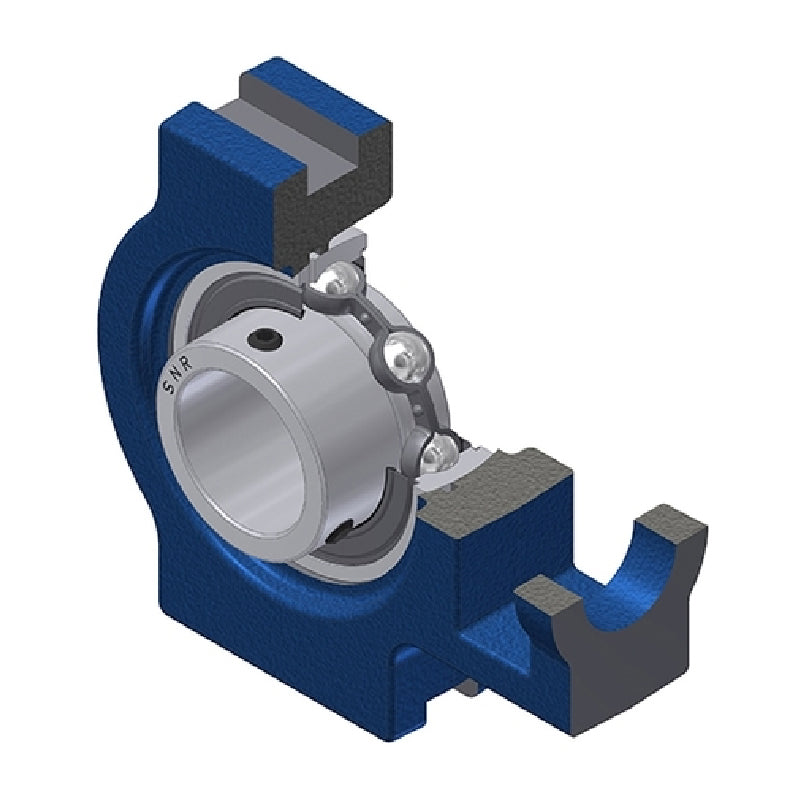

SNR UST207 Metric Cast Iron Take Up Unit with 35mm Bore Bearing Unit

SNR UST207 Metric Cast Iron Take Up Unit with 35mm Bore Bearing Unit
$58.91 ex VAT
$58.91 ex VAT
Sale Sold out

In stock

Price Break
3+ $39.46
4+ $37.25
9+ $36.80
19+ $36.36
49+ $35.91
99+ $35.47
499+ $33.25
999+ $32.81
1999+ $32.37
2999+ $31.92
4999+ $31.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
UST
Technical

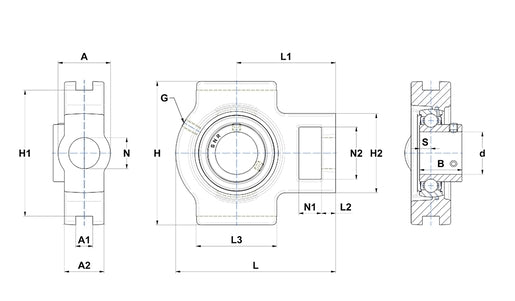

--- Dimensions
Shaft diameter d 35mm
A 37mm
A1 12mm
A2 30mm
B 32mm
H 102mm
H1 89mm
H2 64mm
L 129mm
L1 78mm
L2 13mm
L3 64mm
N 22mm
N1 16mm
N2 37mm
S 8.5mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 1.52 kg
