SKU: UST211-SNR

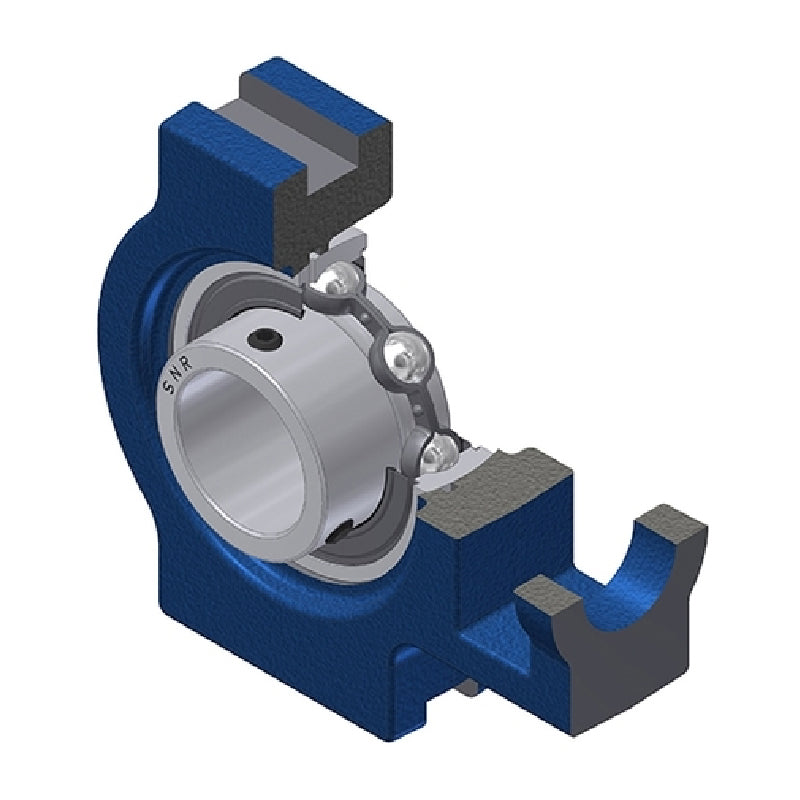

SNR UST211 Metric Cast Iron Take Up Unit with 55mm Bore Bearing Unit - Allow 2-3 Days
SNR UST211 Metric Cast Iron Take Up Unit with 55mm Bore Bearing Unit - Allow 2-3 Days
Regular price
$103.00
ex VAT
Regular price
Sale price
$103.00
ex VAT
In stock
Price Break
3+
$76.73
4+
$73.63
9+
$72.08
19+
$69.76
49+
$68.21
99+
$64.33
499+
$54.26
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UST200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- UST
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 64mm |
| A1 | 22mm |
| A2 | 38mm |
| B | 45.3mm |
| H | 146mm |
| H1 | 130mm |
| H2 | 102mm |
| L | 171mm |
| L1 | 106mm |
| L2 | 19mm |
| L3 | 95mm |
| N | 35mm |
| N1 | 25mm |
| N2 | 64mm |
| S | 11.8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 3.87 kg |
