• VA100 FKM Rubber V-Ring For Shafts 98-105mm
1 1

SKU: V100A.VIT

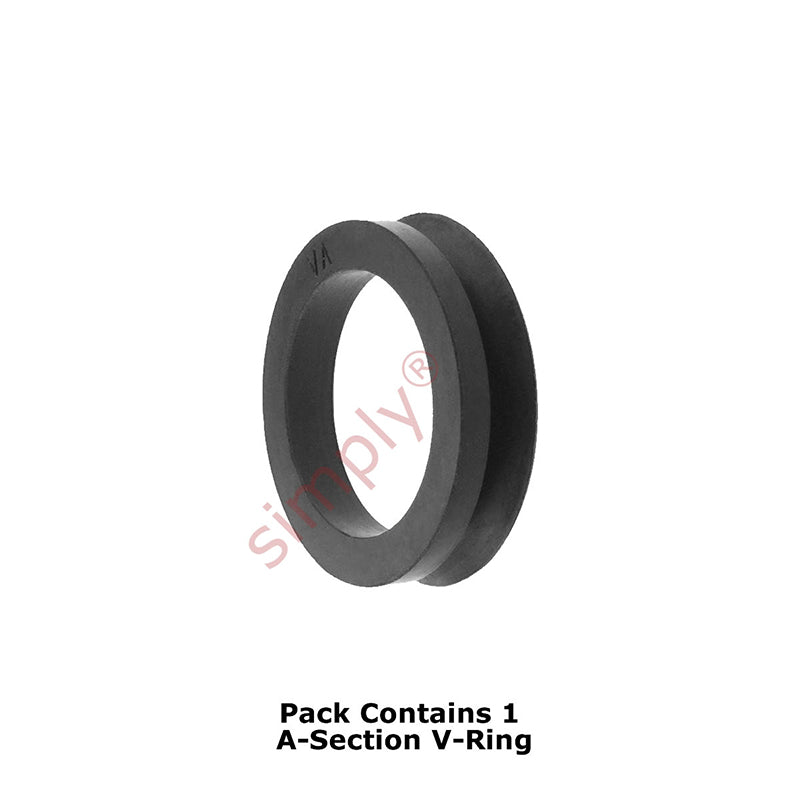

VA100 FKM Rubber V-Ring For Shafts 98-105mm

VA100 FKM Rubber V-Ring For Shafts 98-105mm
$13.22 ex VAT
$13.22 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
A - Section V-Rings - FKM Rubber A-Section V rings have a flat rear face and unlike oil seals don't have a rigid steel shell, V-rings are made completely of rubber and therefore can be stretched over fittings, flanges, bearings, couplings, keys etc. They comprise of a single molded body and conical lip. The 'V'-Ring is mounted on and rotates with the shaft, with the lip sealing against the housing or bearing, the body being held in position by its tight grip around the shaft also serving to seal against the shaft.
Benefits: Flexible shaft range, inexpensive, durable, accommodates misalignment, deflects greases, oils, liquids, grit, sand etc.
Technical
d1 98-105mm
d 90mm
c 6mm
B 11mm
d2 d1 + 4
d3 d1 + 18
B1 9mm
Axial movement ?1.2
