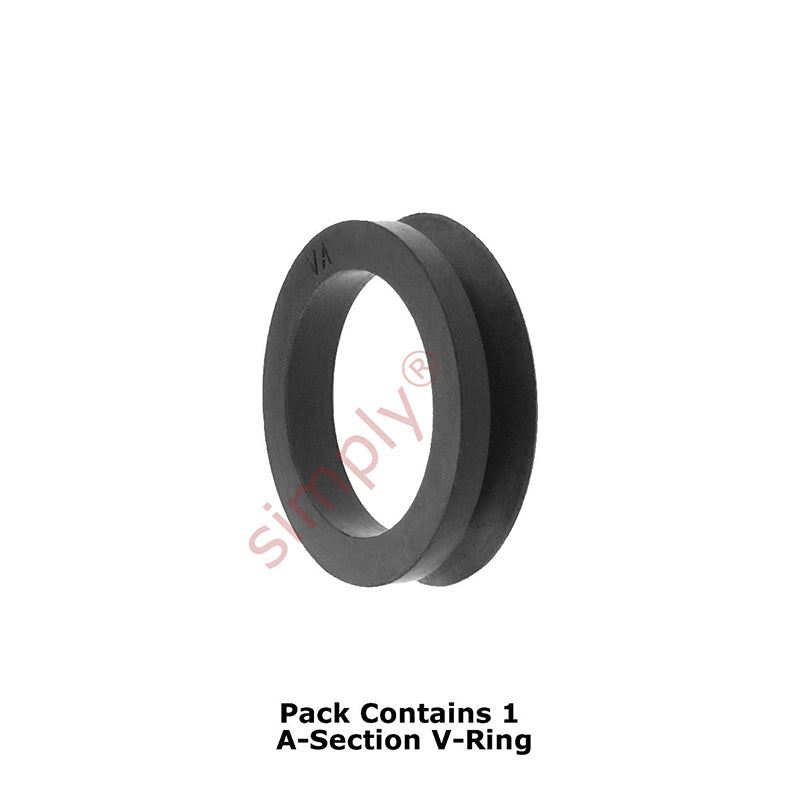

• VA110 FKM Rubber V-Ring For Shafts 105-115mm
1 1

SKU: V110A.VIT

VA110 FKM Rubber V-Ring For Shafts 105-115mm

VA110 FKM Rubber V-Ring For Shafts 105-115mm
$17.62 ex VAT
$17.62 ex VAT
Sale Sold out

In stock

Price Break
5+ $13.13
10+ $12.60
20+ $12.33
50+ $11.93
100+ $11.67
500+ $11.01
1000+ $9.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
A - Section V-Rings - FKM Rubber A-Section V rings have a flat rear face and unlike oil seals don't have a rigid steel shell, V-rings are made completely of rubber and therefore can be stretched over fittings, flanges, bearings, couplings, keys etc. They comprise of a single molded body and conical lip. The 'V'-Ring is mounted on and rotates with the shaft, with the lip sealing against the housing or bearing, the body being held in position by its tight grip around the shaft also serving to seal against the shaft.
Benefits: Flexible shaft range, inexpensive, durable, accommodates misalignment, deflects greases, oils, liquids, grit, sand etc.
Brand / Quality:
Simply VIT V-Ring - High Quality
Style:
A Section V Ring
Shaft Size:
105-115mm
Hardness:
* 70 Shore (Most Common)
Technical
d1 105-115mm
d 99mm
c 7mm
B 12.8mm
d2 d1 + 4
d3 d1 + 21
B1 10.5mm
Axial movement ?1.5
