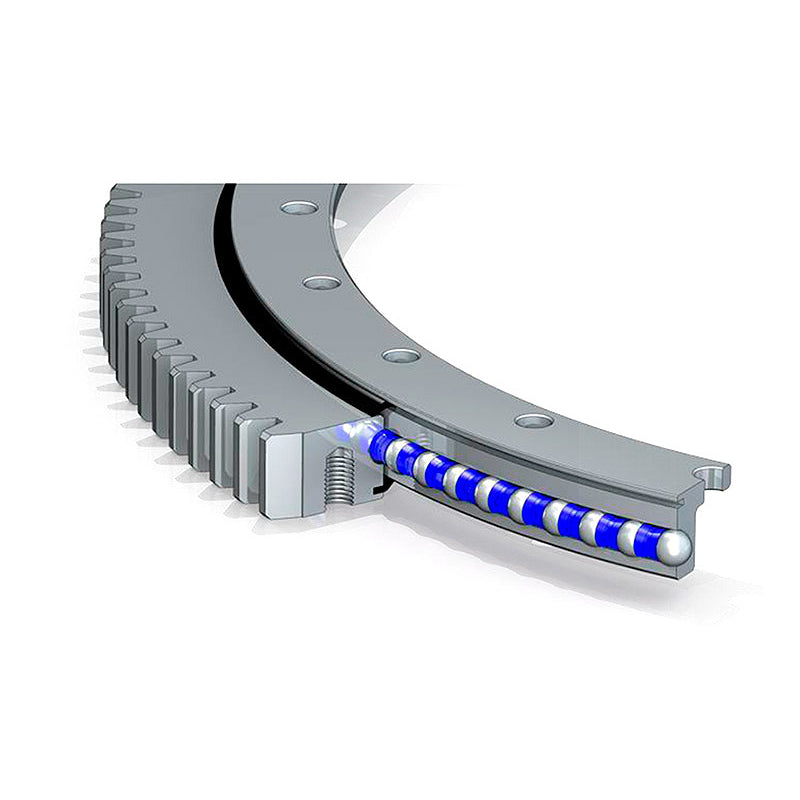

• Major Branded VLA200414N Four Point Contact Slewing Ring Bearing with External Gear 304x503.3x56mm - Allow 2-3 Days
1 1

SKU: VLA200414N-MB

Major Branded VLA200414N Four Point Contact Slewing Ring Bearing with External Gear 304x503.3x56mm - Allow 2-3 Days

Major Branded VLA200414N Four Point Contact Slewing Ring Bearing with External Gear 304x503.3x56mm - Allow 2-3 Days
$1,164.62 ex VAT
$1,164.62 ex VAT
Sale Sold out

In stock

Price Break
3+ $780.09
5+ $736.27
9+ $727.50
19+ $718.74
49+ $709.97
74+ $701.21
99+ $657.38
199+ $648.61
249+ $639.85
499+ $631.08
999+ $613.55

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
304mm
Outside Diameter:
503.3mm
Width:
56mm
Style:
VLA
Technical
--- Main Dimensions & Performance Data
di - Bore Diameter 304mm
Bore diameter upper tolerance 0.5mm
Bore diameter lower tolerance 0mm
hf IR - Height of flange 12mm
H - Height 56mm
Da - Outside Diameter 503.3mm
t - Length centering inner ring 12mm
ha - Width outer ring 44.5mm
hi - Height of inner ring 44.5mm
Weight 28.415 kg
--- Dimensions
Di - Inner diameter outer ring 415.5mm
Inner diameter outer ring upper tolerance 0.5mm
Inner diameter outer ring lower tolerance 0mm
da - Outside diameter inner ring 412.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.5mm
ni - Number of fixing holes in inner ring 12
Li - Pitch circle diameter fixing holes inner ring 332mm
dB - Fixing bore 18mm
na - Number of fixing holes in outer ring 10
La - Pitch circle diameter fixing holes outer ring 455mm
dBa - Tread fixing bore M12
Gl - Thread depth fixing hole 20mm
hAIR - Ring cross section 20mm
Fr zul - Max. radial load fixing screws (friction locking) 41300 N
d0 - Pitch circle diameter gearing 495mm
m - Modul of gearing 5mm
z - Number of teeth 99
b - Width gearing 40mm
D - Offset diameter outer ring 480mm
Offset diameter outer ring upper tolerance 0mm
Offset diameter outer ring lower tolerance -0.5mm
Fz norm - Max. tooth force root fatigue strenght (at a shock factor of 1,2) 15900 N
Fz max - Max. tooth force against tooth fracture (at a shock factor of 1,35) 23600 N
--- Temperature Range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation Factors
Ca - Basic dynamic load rating, axial 137000 N
C0a - Basic static load rating, axial 295000 N
Cr - Basic dynamic load rating, radial 124000 N
C0r - Basic static load rating, radial 110000 N
