SKU: VLA200544N-MB

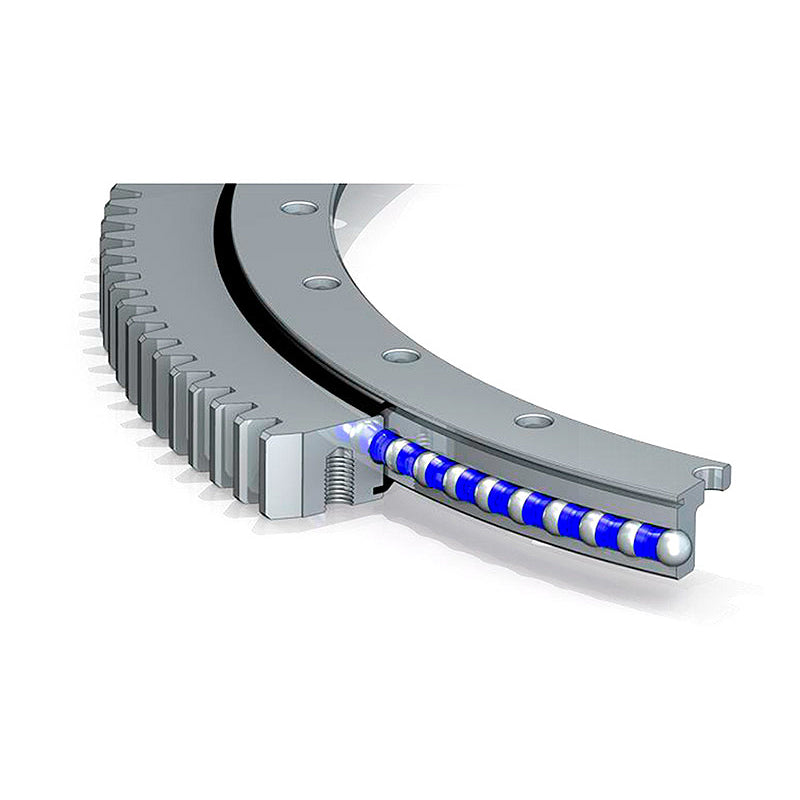

Major Branded VLA200544N Four Point Contact Slewing Ring Bearing with External Gear 434x640.3x56mm - Allow 2-3 Days

Major Branded VLA200544N Four Point Contact Slewing Ring Bearing with External Gear 434x640.3x56mm - Allow 2-3 Days
$1,408.80 ex VAT
$1,408.80 ex VAT
Sale Sold out

In stock

Price Break
3+ $943.66
5+ $890.64
9+ $880.04
19+ $869.44
49+ $858.83
74+ $848.23
99+ $795.22
199+ $784.61
249+ $774.01
499+ $763.41
999+ $742.20

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
434mm
Outside Diameter:
640.3mm
Width:
56mm
Style:
VLA
Technical
--- Main Dimensions & Performance Data
di - Bore Diameter 434mm
Bore diameter upper tolerance 0.5mm
Bore diameter lower tolerance 0mm
hf IR - Height of flange 12mm
H - Height 56mm
Da - Outside Diameter 640.3mm
t - Length centering inner ring 12mm
ha - Width outer ring 44.5mm
hi - Height of inner ring 44.5mm
Weight 41.73 kg
--- Dimensions
Di - Inner diameter outer ring 545.5mm
Inner diameter outer ring upper tolerance 0.5mm
Inner diameter outer ring lower tolerance 0mm
da - Outside diameter inner ring 542.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.5mm
ni - Number of fixing holes in inner ring 14
Li - Pitch circle diameter fixing holes inner ring 462mm
dB - Fixing bore 18mm
na - Number of fixing holes in outer ring 14
La - Pitch circle diameter fixing holes outer ring 585mm
dBa - Tread fixing bore M12
Gl - Thread depth fixing hole 20mm
hAIR - Ring cross section 20mm
Fr zul - Max. radial load fixing screws (friction locking) 72500 N
d0 - Pitch circle diameter gearing 630mm
m - Modul of gearing 6mm
z - Number of teeth 105
Fz norm - Max. tooth force root fatigue strenght (at a shock factor of 1,2) 21300 N
Fz max - Max. tooth force against tooth fracture (at a shock factor of 1,35) 31500 N
--- Temperature Range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation Factors
Ca - Basic dynamic load rating, axial 152000 N
C0a - Basic static load rating, axial 385000 N
Cr - Basic dynamic load rating, radial 138000 N
C0r - Basic static load rating, radial 144000 N
