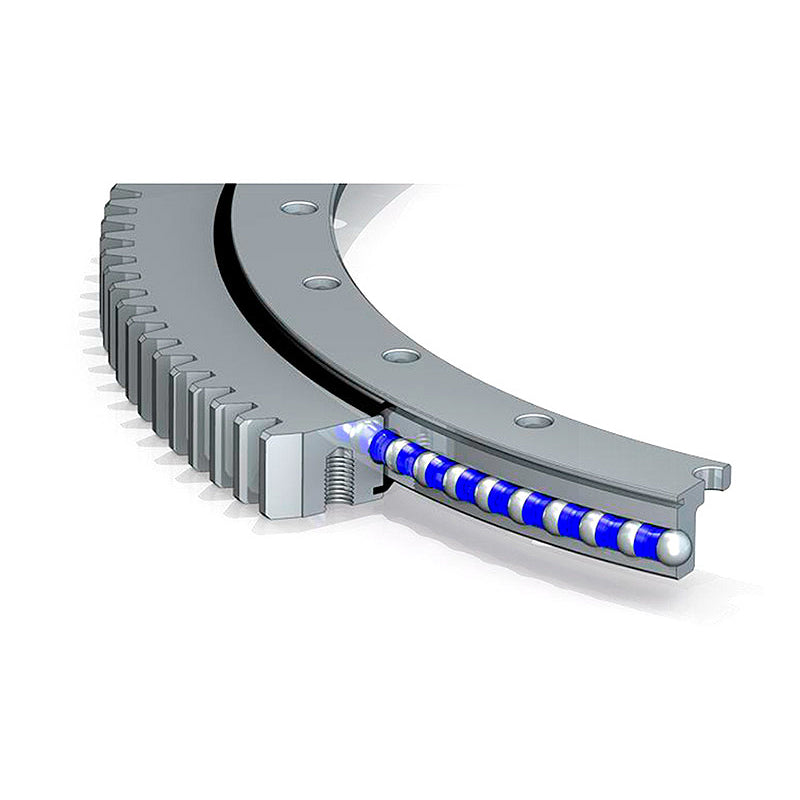

• Major Branded VLA200744N Four Point Contact Slewing Ring Bearing with External Gear 634x838.1x56mm - Allow 2-3 Days
1 1

SKU: VLA200744N-MB

Major Branded VLA200744N Four Point Contact Slewing Ring Bearing with External Gear 634x838.1x56mm - Allow 2-3 Days

Major Branded VLA200744N Four Point Contact Slewing Ring Bearing with External Gear 634x838.1x56mm - Allow 2-3 Days
$1,951.46 ex VAT
$1,951.46 ex VAT
Sale Sold out

In stock

Price Break
3+ $1,307.14
5+ $1,233.71
9+ $1,219.02
19+ $1,204.33
49+ $1,189.65
74+ $1,174.96
99+ $1,101.52
199+ $1,086.84
249+ $1,072.15
499+ $1,057.46
999+ $1,028.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
634mm
Outside Diameter:
838.1mm
Width:
56mm
Style:
VLA
Technical
--- Main Dimensions & Performance Data
di - Bore Diameter 634mm
Bore diameter upper tolerance 0.6mm
Bore diameter lower tolerance 0mm
hf IR - Height of flange 12mm
H - Height 56mm
Da - Outside Diameter 838.1mm
t - Length centering inner ring 12mm
ha - Width outer ring 44.5mm
hi - Height of inner ring 44.5mm
Weight 54.5 kg
--- Dimensions
Di - Inner diameter outer ring 745.5mm
Inner diameter outer ring upper tolerance 0.6mm
Inner diameter outer ring lower tolerance 0mm
da - Outside diameter inner ring 742.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.6mm
ni - Number of fixing holes in inner ring 16
Li - Pitch circle diameter fixing holes inner ring 662mm
dB - Fixing bore 18mm
na - Number of fixing holes in outer ring 18
La - Pitch circle diameter fixing holes outer ring 785mm
dBa - Tread fixing bore M12
Gl - Thread depth fixing hole 20mm
hAIR - Ring cross section 20mm
Fr zul - Max. radial load fixing screws (friction locking) 74300 N
d0 - Pitch circle diameter gearing 828mm
m - Modul of gearing 6mm
z - Number of teeth 138
Fz norm - Max. tooth force root fatigue strenght (at a shock factor of 1,2) 21300 N
Fz max - Max. tooth force against tooth fracture (at a shock factor of 1,35) 31500 N
--- Temperature Range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation Factors
Ca - Basic dynamic load rating, axial 171000 N
C0a - Basic static load rating, axial 530000 N
Cr - Basic dynamic load rating, radial 155000 N
C0r - Basic static load rating, radial 197000 N
