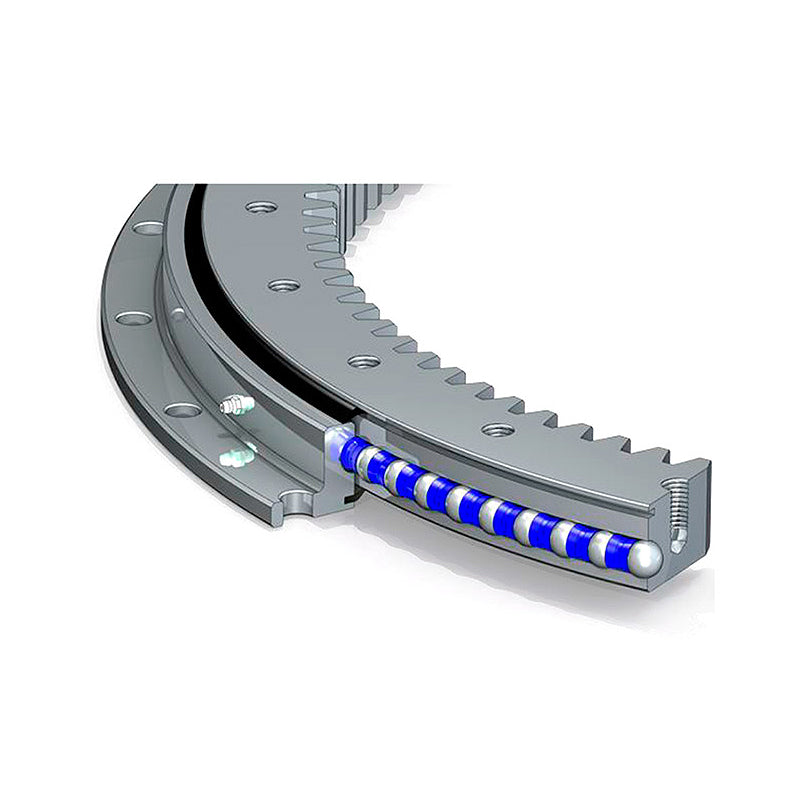

• Major Branded VLI200414N Four Point Contact Slewing Ring Bearing with Internal Gear 325x518x56mm - Allow 2-3 Days
1 1

SKU: VLI200414N-MB

Major Branded VLI200414N Four Point Contact Slewing Ring Bearing with Internal Gear 325x518x56mm - Allow 2-3 Days

Major Branded VLI200414N Four Point Contact Slewing Ring Bearing with Internal Gear 325x518x56mm - Allow 2-3 Days
$1,193.83 ex VAT
$1,193.83 ex VAT
Sale Sold out

In stock

Price Break
3+ $799.66
5+ $754.74
9+ $745.75
19+ $736.77
49+ $727.78
74+ $718.80
99+ $673.87
199+ $664.89
249+ $655.90
499+ $646.92
999+ $628.95

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
325mm
Outside Diameter:
518mm
Width:
56mm
Style:
VLI
Technical
--- Main Dimensions & Performance Data
d1 - Bore Diameter 325mm
H - Height 56mm
Da - Outside Diameter 518mm
Outside diameter lower tolerance -0.5mm
Outside diameter upper tolerance 0mm
hf - Height of flange 12mm
ha - Width outer ring 44.5mm
hi - Width inner ring 44.5mm
Weight 27.3 kg
--- Dimensions
Di - Inner diameter outer ring 415.5mm
Inner diameter outer ring upper tolerance 0.5mm
Inner diameter outer ring lower tolerance 0mm
La - Pitch circle diameter fixing holes outer ring 490mm
na - Number of fixing holes in outer ring 8
dB - Fixing bore 18mm
da - Outside diameter inner ring 412.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.5mm
Li - Pitch circle diameter fixing holes inner ring 375mm
dBi - Tread fixing bore M12
Gl - Thread depth fixing hole 20mm
ni - Number of fixing holes in inner ring 12
Fr zul - Max. radial load fixing screws (friction locking) 49600 N
m - Modul of gearing 5mm
z - Number of teeth 67
d0 - Pitch circle diameter gearing 335mm
b - Width gearing 40mm
d1 - Diameter turning inner ring 350mm
Diameter turning inner ring upper tolerance 0.5mm
Diameter turning inner ring lower tolerance 0mm
hA - Ring cross section 20mm
Fz norm - Max. tooth force root fatigue strenght (at a shock factor of 1,2) 17700 N
Fz max - Max. tooth force against tooth fracture (at a shock factor of 1,35) 26200 N
--- Temperature range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation factors
Ca - Basic dynamic load rating, axial 137000 N
C0a - Basic static load rating, axial 295000 N
Cr - Basic dynamic load rating, radial 124000 N
C0r - Basic static load rating, radial 110000 N
