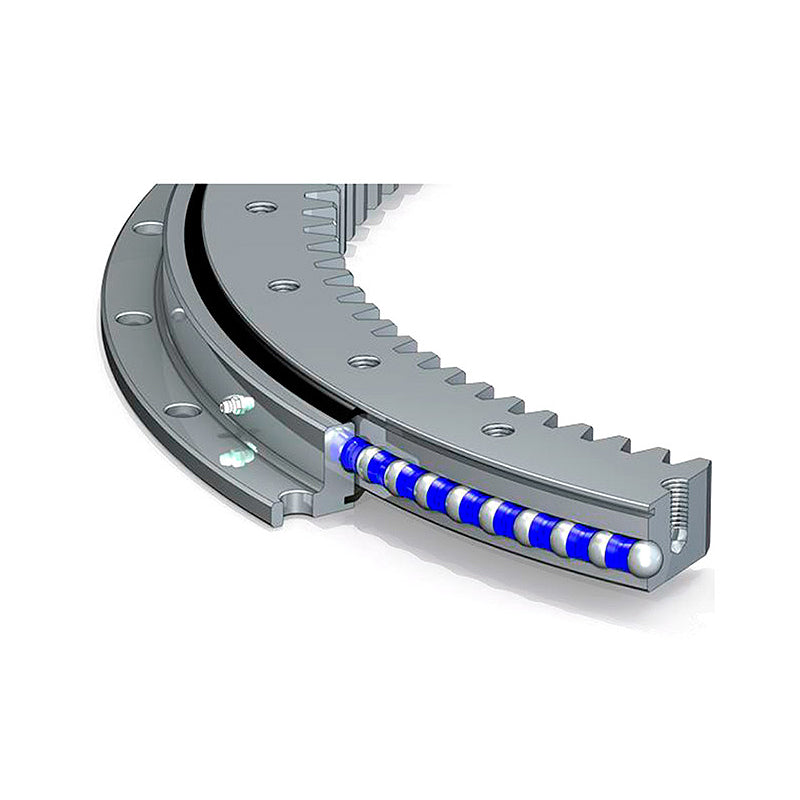

• Major Branded VLI201094N Four Point Contact Slewing Ring Bearing with Internal Gear 984x1198x56mm - Allow 2-3 Days
1 1

SKU: VLI201094N-MB

Major Branded VLI201094N Four Point Contact Slewing Ring Bearing with Internal Gear 984x1198x56mm - Allow 2-3 Days

Major Branded VLI201094N Four Point Contact Slewing Ring Bearing with Internal Gear 984x1198x56mm - Allow 2-3 Days
$2,705.35 ex VAT
$2,705.35 ex VAT
Sale Sold out

In stock

Price Break
3+ $1,812.12
5+ $1,710.32
9+ $1,689.96
19+ $1,669.60
49+ $1,649.24
74+ $1,628.87
99+ $1,527.07
199+ $1,506.71
249+ $1,486.35
499+ $1,465.99
999+ $1,425.27

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
984mm
Outside Diameter:
1198mm
Width:
56mm
Style:
VLI
Technical
--- Main Dimensions & Performance Data
d1 - Bore Diameter 984mm
H - Height 56mm
Da - Outside Diameter 1198mm
Outside diameter lower tolerance -0.7mm
Outside diameter upper tolerance 0mm
hf - Height of flange 12mm
ha - Width outer ring 44.5mm
hi - Width inner ring 44.5mm
Weight 81.51 kg
--- Dimensions
Di - Inner diameter outer ring 1095.5mm
Inner diameter outer ring upper tolerance 0.7mm
Inner diameter outer ring lower tolerance 0mm
La - Pitch circle diameter fixing holes outer ring 1170mm
na - Number of fixing holes in outer ring 16
dB - Fixing bore 18mm
da - Outside diameter inner ring 1092.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.7mm
Li - Pitch circle diameter fixing holes inner ring 1055mm
dBi - Tread fixing bore M12
Gl - Thread depth fixing hole 20mm
ni - Number of fixing holes in inner ring 24
Fr zul - Max. radial load fixing screws (friction locking) 99100 N
m - Modul of gearing 8mm
z - Number of teeth 125
d0 - Pitch circle diameter gearing 1000mm
hA - Ring cross section 20mm
Fz norm - Max. tooth force root fatigue strenght (at a shock factor of 1,2) 31400 N
Fz max - Max. tooth force against tooth fracture (at a shock factor of 1,35) 46700 N
--- Temperature range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation factors
Ca - Basic dynamic load rating, axial 198000 N
C0a - Basic static load rating, axial 780000 N
Cr - Basic dynamic load rating, radial 179000 N
C0r - Basic static load rating, radial 290000 N
