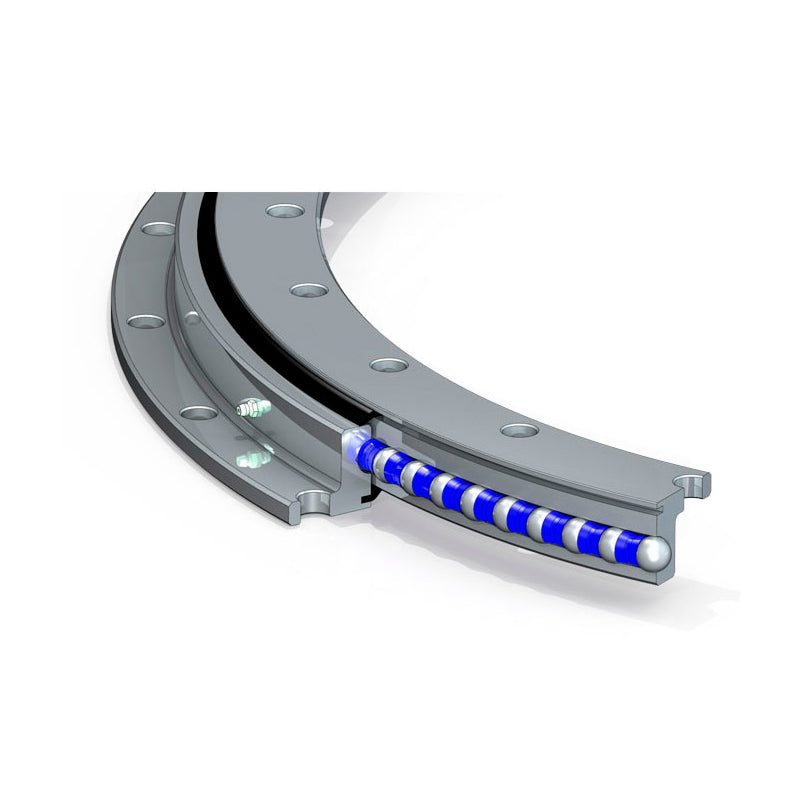

• Major Branded VLU200414 Four Point Contact Slewing Ring Bearing 304x518x56mm - Allow 2-3 Days
1 1

SKU: VLU200414-MB

Major Branded VLU200414 Four Point Contact Slewing Ring Bearing 304x518x56mm - Allow 2-3 Days

Major Branded VLU200414 Four Point Contact Slewing Ring Bearing 304x518x56mm - Allow 2-3 Days
$1,147.91 ex VAT
$1,147.91 ex VAT
Sale Sold out

In stock

Price Break
3+ $768.91
5+ $725.71
9+ $717.07
19+ $708.43
49+ $699.79
74+ $691.15
99+ $647.96
199+ $639.32
249+ $630.68
499+ $622.04
999+ $604.76

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
304mm
Outside Diameter:
518mm
Width:
56mm
Style:
VLU
Technical
--- Main Dimensions & Performance Data
di - Inner diameter inner ring 304mm
Inner diameter inner ring lower tolerance 0mm
Inner diameter inner ring upper tolerance 0.5mm
H - Height 56mm
Da - Outside Diameter 518mm
Outside diameter lower tolerance -0.5mm
Outside diameter upper tolerance 0mm
T - Length centering outer ring 12mm
t - Length centering inner ring 12mm
ha - Width outer ring 44.5mm
hi - Width inner ring 44.5mm
Weight 23.71 kg
--- Dimensions
Di - Inner diameter outer ring 415.5mm
Inner diameter outer ring upper tolerance 0.5mm
Inner diameter outer ring lower tolerance 0mm
da - Outside diameter inner ring 412.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.5mm
dB - Fixing bore 18mm
La - Pitchcircle diameter fixing holes outer ring 490mm
na - Number of fixing holes in outer ring 8
Li - Pitch circle diameter fixing holes inner ring 332mm
ni - Number of fixing holes in inner ring 12
Fr zul - Max. radial load fixing screws (friction locking) 55000 N
hA - Ring cross section 20mm
--- Temperature Range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation Factors
Ca - Basic dynamic load rating, axial 137000 N
C0a - Basic static load rating, axial 295000 N
Cr - Basic dynamic load rating, radial (for radial load only) 124000 N
C0r - Basic static load rating, radial (for radial load only) 110000 N
