SKU: VLU200544-MB

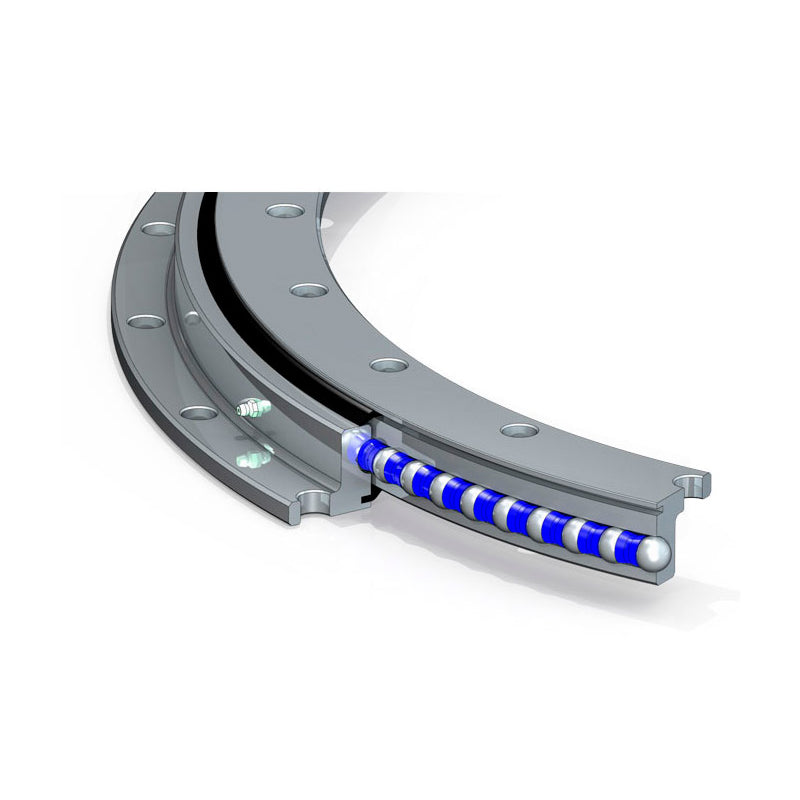

Major Branded VLU200544 Four Point Contact Slewing Ring Bearing 434x648x56mm - Allow 2-3 Days

Major Branded VLU200544 Four Point Contact Slewing Ring Bearing 434x648x56mm - Allow 2-3 Days
$1,362.88 ex VAT
$1,362.88 ex VAT
Sale Sold out

In stock

Price Break
3+ $912.90
5+ $861.62
9+ $851.36
19+ $841.10
49+ $830.84
74+ $820.59
99+ $769.30
199+ $759.04
249+ $748.78
499+ $738.53
999+ $718.01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
434mm
Outside Diameter:
648mm
Width:
56mm
Style:
VLU
Technical
--- Main Dimensions & Performance Data
di - Inner diameter inner ring 434mm
Inner diameter inner ring lower tolerance 0mm
Inner diameter inner ring upper tolerance 0.5mm
H - Height 56mm
Da - Outside Diameter 648mm
Outside diameter lower tolerance -0.5mm
Outside diameter upper tolerance 0mm
T - Length centering outer ring 12mm
t - Length centering inner ring 12mm
ha - Width outer ring 44.5mm
hi - Width inner ring 44.5mm
Weight 31.41 kg
--- Dimensions
Di - Inner diameter outer ring 545.5mm
Inner diameter outer ring upper tolerance 0.5mm
Inner diameter outer ring lower tolerance 0mm
da - Outside diameter inner ring 542.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.5mm
dB - Fixing bore 18mm
La - Pitchcircle diameter fixing holes outer ring 620mm
na - Number of fixing holes in outer ring 10
Li - Pitch circle diameter fixing holes inner ring 462mm
ni - Number of fixing holes in inner ring 14
Fr zul - Max. radial load fixing screws (friction locking) 72500 N
hA - Ring cross section 20mm
--- Temperature Range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation Factors
Ca - Basic dynamic load rating, axial 152000 N
C0a - Basic static load rating, axial 385000 N
Cr - Basic dynamic load rating, radial (for radial load only) 138000 N
C0r - Basic static load rating, radial (for radial load only) 144000 N
