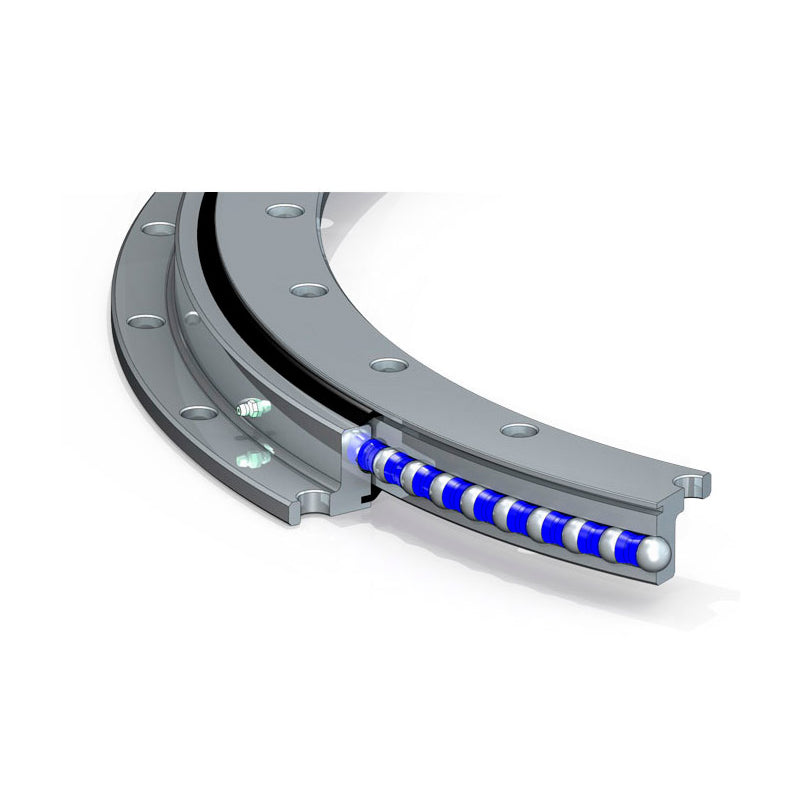

• Major Branded VLU200644 Four Point Contact Slewing Ring Bearing 534x748x56mm - Allow 2-3 Days
1 1

SKU: VLU200644-MB

Major Branded VLU200644 Four Point Contact Slewing Ring Bearing 534x748x56mm - Allow 2-3 Days

Major Branded VLU200644 Four Point Contact Slewing Ring Bearing 534x748x56mm - Allow 2-3 Days
$1,596.64 ex VAT
$1,596.64 ex VAT
Sale Sold out

In stock

Price Break
3+ $1,069.48
5+ $1,009.40
9+ $997.38
19+ $985.36
49+ $973.35
74+ $961.33
99+ $901.25
199+ $889.23
249+ $877.21
499+ $865.20
999+ $841.16

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
534mm
Outside Diameter:
748mm
Width:
56mm
Style:
VLU
Technical
--- Main Dimensions & Performance Data
di - Inner diameter inner ring 534mm
Inner diameter inner ring lower tolerance 0mm
Inner diameter inner ring upper tolerance 0.6mm
H - Height 56mm
Da - Outside Diameter 748mm
Outside diameter lower tolerance -0.6mm
Outside diameter upper tolerance 0mm
T - Length centering outer ring 12mm
t - Length centering inner ring 12mm
ha - Width outer ring 44.5mm
hi - Width inner ring 44.5mm
Weight 36.4 kg
--- Dimensions
Di - Inner diameter outer ring 645.5mm
Inner diameter outer ring upper tolerance 0.6mm
Inner diameter outer ring lower tolerance 0mm
da - Outside diameter inner ring 642.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.6mm
dB - Fixing bore 18mm
La - Pitchcircle diameter fixing holes outer ring 720mm
na - Number of fixing holes in outer ring 12
Li - Pitch circle diameter fixing holes inner ring 562mm
ni - Number of fixing holes in inner ring 16
Fr zul - Max. radial load fixing screws (friction locking) 85500 N
hA - Ring cross section 20mm
--- Temperature Range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation Factors
Ca - Basic dynamic load rating, axial 162000 N
C0a - Basic static load rating, axial 455000 N
Cr - Basic dynamic load rating, radial (for radial load only) 147000 N
C0r - Basic static load rating, radial (for radial load only) 171000 N
