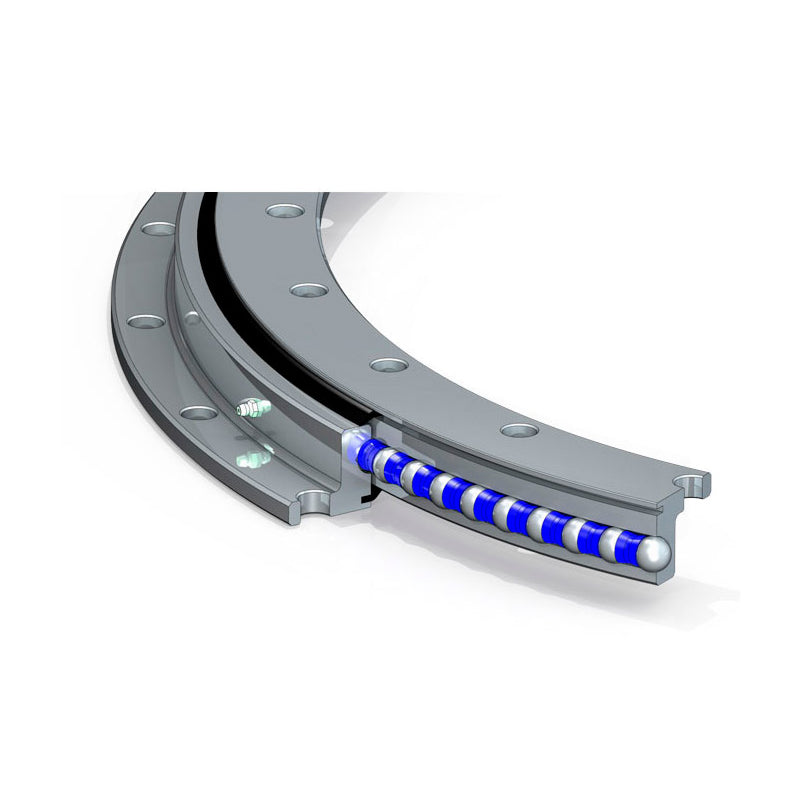

• Major Branded VLU200744 Four Point Contact Slewing Ring Bearing 634x848x56mm - Allow 2-3 Days
1 1

SKU: VLU200744-MB

Major Branded VLU200744 Four Point Contact Slewing Ring Bearing 634x848x56mm - Allow 2-3 Days

Major Branded VLU200744 Four Point Contact Slewing Ring Bearing 634x848x56mm - Allow 2-3 Days
$1,913.88 ex VAT
$1,913.88 ex VAT
Sale Sold out

In stock

Price Break
3+ $1,281.98
5+ $1,209.96
9+ $1,195.55
19+ $1,181.15
49+ $1,166.74
74+ $1,152.34
99+ $1,080.32
199+ $1,065.91
249+ $1,051.51
499+ $1,037.11
999+ $1,008.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
634mm
Outside Diameter:
848mm
Width:
56mm
Style:
VLU
Technical
--- Main Dimensions & Performance Data
di - Inner diameter inner ring 634mm
Inner diameter inner ring lower tolerance 0mm
Inner diameter inner ring upper tolerance 0.6mm
H - Height 56mm
Da - Outside Diameter 848mm
Outside diameter lower tolerance -0.6mm
Outside diameter upper tolerance 0mm
T - Length centering outer ring 12mm
t - Length centering inner ring 12mm
ha - Width outer ring 44.5mm
hi - Width inner ring 44.5mm
Weight 41.8 kg
--- Dimensions
Di - Inner diameter outer ring 745.5mm
Inner diameter outer ring upper tolerance 0.6mm
Inner diameter outer ring lower tolerance 0mm
da - Outside diameter inner ring 742.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.6mm
dB - Fixing bore 18mm
La - Pitchcircle diameter fixing holes outer ring 820mm
na - Number of fixing holes in outer ring 12
Li - Pitch circle diameter fixing holes inner ring 662mm
ni - Number of fixing holes in inner ring 16
Fr zul - Max. radial load fixing screws (friction locking) 93600 N
hA - Ring cross section 20mm
--- Temperature Range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation Factors
Ca - Basic dynamic load rating, axial 171000 N
C0a - Basic static load rating, axial 530000 N
Cr - Basic dynamic load rating, radial (for radial load only) 155000 N
C0r - Basic static load rating, radial (for radial load only) 197000 N
