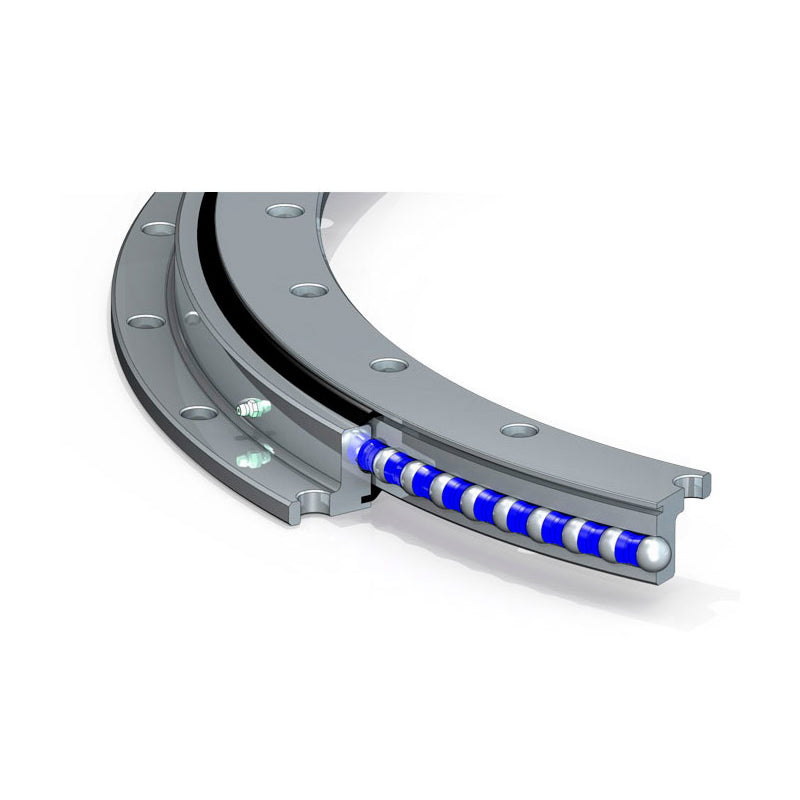

• Major Branded VLU200844 Four Point Contact Slewing Ring Bearing 734x948x56mm - Allow 2-3 Days
1 1

SKU: VLU200844-MB

Major Branded VLU200844 Four Point Contact Slewing Ring Bearing 734x948x56mm - Allow 2-3 Days

Major Branded VLU200844 Four Point Contact Slewing Ring Bearing 734x948x56mm - Allow 2-3 Days
$2,043.28 ex VAT
$2,043.28 ex VAT
Sale Sold out

In stock

Price Break
3+ $1,368.65
5+ $1,291.76
9+ $1,276.39
19+ $1,261.01
49+ $1,245.63
74+ $1,230.25
99+ $1,153.36
199+ $1,137.98
249+ $1,122.60
499+ $1,107.23
999+ $1,076.47

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
734mm
Outside Diameter:
948mm
Width:
56mm
Style:
VLU
Technical
--- Main Dimensions & Performance Data
di - Inner diameter inner ring 734mm
Inner diameter inner ring lower tolerance 0mm
Inner diameter inner ring upper tolerance 0.6mm
H - Height 56mm
Da - Outside Diameter 948mm
Outside diameter lower tolerance -0.6mm
Outside diameter upper tolerance 0mm
T - Length centering outer ring 12mm
t - Length centering inner ring 12mm
ha - Width outer ring 44.5mm
hi - Width inner ring 44.5mm
Weight 48.01 kg
--- Dimensions
Di - Inner diameter outer ring 845.5mm
Inner diameter outer ring upper tolerance 0.6mm
Inner diameter outer ring lower tolerance 0mm
da - Outside diameter inner ring 842.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.6mm
dB - Fixing bore 18mm
La - Pitchcircle diameter fixing holes outer ring 920mm
na - Number of fixing holes in outer ring 14
Li - Pitch circle diameter fixing holes inner ring 762mm
ni - Number of fixing holes in inner ring 18
Fr zul - Max. radial load fixing screws (friction locking) 109200 N
hA - Ring cross section 20mm
--- Temperature Range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation Factors
Ca - Basic dynamic load rating, axial 180000 N
C0a - Basic static load rating, axial 600000 N
Cr - Basic dynamic load rating, radial (for radial load only) 163000 N
C0r - Basic static load rating, radial (for radial load only) 224000 N
