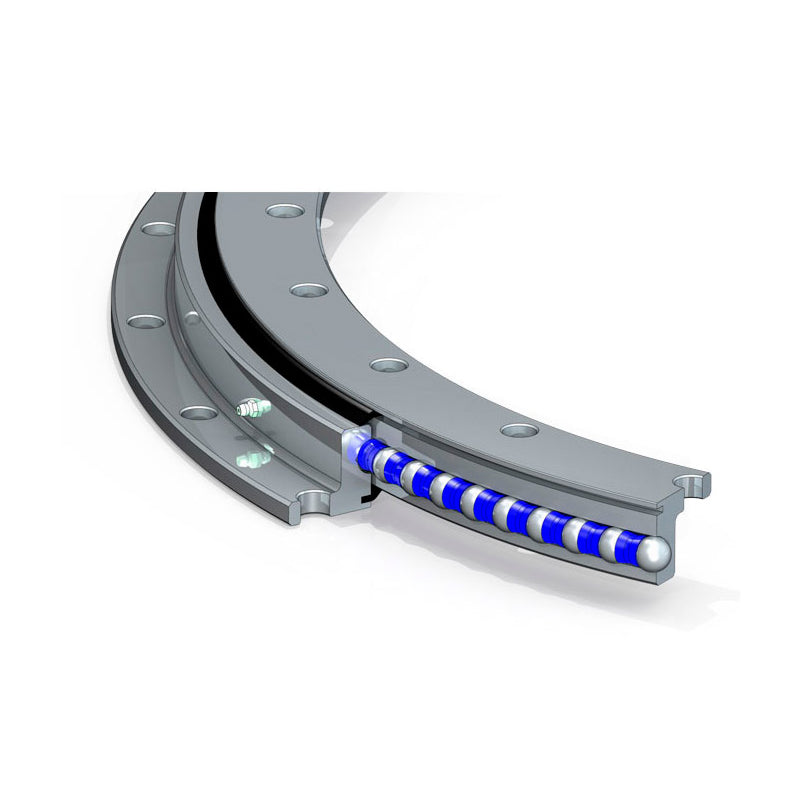

• Major Branded VLU200944 Four Point Contact Slewing Ring Bearing 834x1048x56mm - Allow 2-3 Days
1 1

SKU: VLU200944-MB

Major Branded VLU200944 Four Point Contact Slewing Ring Bearing 834x1048x56mm - Allow 2-3 Days

Major Branded VLU200944 Four Point Contact Slewing Ring Bearing 834x1048x56mm - Allow 2-3 Days
$2,249.91 ex VAT
$2,249.91 ex VAT
Sale Sold out

In stock

Price Break
3+ $1,507.06
5+ $1,422.39
9+ $1,405.46
19+ $1,388.52
49+ $1,371.59
74+ $1,354.66
99+ $1,269.99
199+ $1,253.06
249+ $1,236.13
499+ $1,219.19
999+ $1,185.33

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
834mm
Outside Diameter:
1048mm
Width:
56mm
Style:
VLU
Technical
--- Main Dimensions & Performance Data
di - Inner diameter inner ring 834mm
Inner diameter inner ring lower tolerance 0mm
Inner diameter inner ring upper tolerance 0.7mm
H - Height 56mm
Da - Outside Diameter 1048mm
Outside diameter lower tolerance -0.7mm
Outside diameter upper tolerance 0mm
T - Length centering outer ring 12mm
t - Length centering inner ring 12mm
ha - Width outer ring 44.5mm
hi - Width inner ring 44.5mm
Weight 54.125 kg
--- Dimensions
Di - Inner diameter outer ring 945.5mm
Inner diameter outer ring upper tolerance 0.7mm
Inner diameter outer ring lower tolerance 0mm
da - Outside diameter inner ring 942.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.7mm
dB - Fixing bore 18mm
La - Pitchcircle diameter fixing holes outer ring 1020mm
na - Number of fixing holes in outer ring 16
Li - Pitch circle diameter fixing holes inner ring 862mm
ni - Number of fixing holes in inner ring 20
Fr zul - Max. radial load fixing screws (friction locking) 124800 N
hA - Ring cross section 20mm
--- Temperature Range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation Factors
Ca - Basic dynamic load rating, axial 188000 N
C0a - Basic static load rating, axial 670000 N
Cr - Basic dynamic load rating, radial (for radial load only) 170000 N
C0r - Basic static load rating, radial (for radial load only) 250000 N
