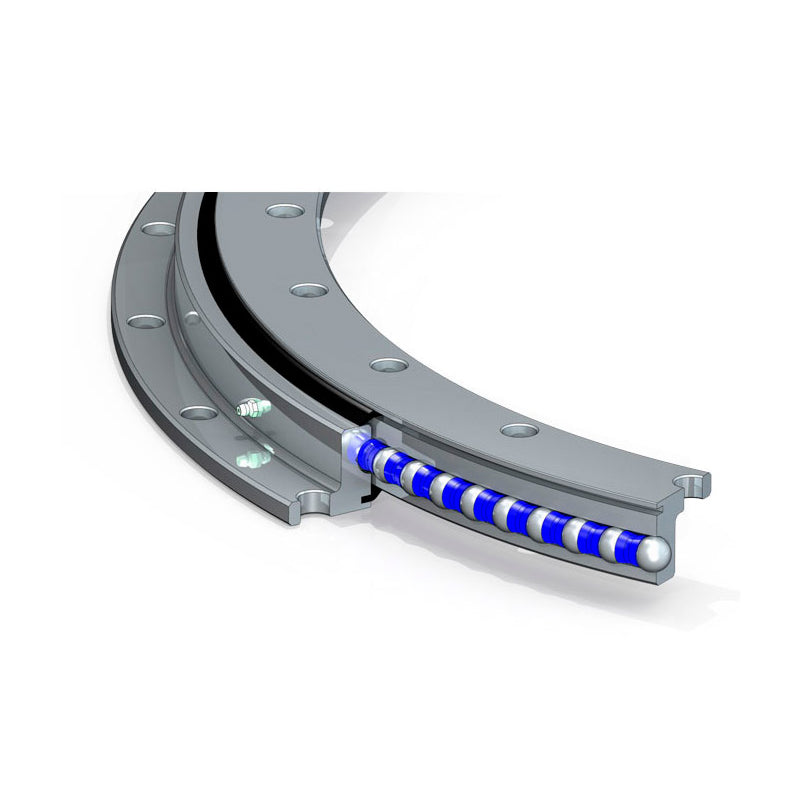

• Major Branded VLU201094 Four Point Contact Slewing Ring Bearing 984x1198x56mm - Allow 2-3 Days
1 1

SKU: VLU201094-MB

Major Branded VLU201094 Four Point Contact Slewing Ring Bearing 984x1198x56mm - Allow 2-3 Days

Major Branded VLU201094 Four Point Contact Slewing Ring Bearing 984x1198x56mm - Allow 2-3 Days
$2,410.61 ex VAT
$2,410.61 ex VAT
Sale Sold out

In stock

Price Break
3+ $1,614.70
5+ $1,523.99
9+ $1,505.85
19+ $1,487.70
49+ $1,469.56
74+ $1,451.42
99+ $1,360.71
199+ $1,342.56
249+ $1,324.42
499+ $1,306.28
999+ $1,269.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
984mm
Outside Diameter:
1198mm
Width:
56mm
Style:
VLU
Technical
--- Main Dimensions & Performance Data
di - Inner diameter inner ring 984mm
Inner diameter inner ring lower tolerance 0mm
Inner diameter inner ring upper tolerance 0.7mm
H - Height 56mm
Da - Outside Diameter 1198mm
Outside diameter lower tolerance -0.7mm
Outside diameter upper tolerance 0mm
T - Length centering outer ring 12mm
t - Length centering inner ring 12mm
ha - Width outer ring 44.5mm
hi - Width inner ring 44.5mm
Weight 62.33 kg
--- Dimensions
Di - Inner diameter outer ring 1095.5mm
Inner diameter outer ring upper tolerance 0.7mm
Inner diameter outer ring lower tolerance 0mm
da - Outside diameter inner ring 1092.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.7mm
dB - Fixing bore 18mm
La - Pitchcircle diameter fixing holes outer ring 1170mm
na - Number of fixing holes in outer ring 16
Li - Pitch circle diameter fixing holes inner ring 1012mm
ni - Number of fixing holes in inner ring 20
Fr zul - Max. radial load fixing screws (friction locking) 124800 N
hA - Ring cross section 20mm
--- Temperature Range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation Factors
Ca - Basic dynamic load rating, axial 198000 N
C0a - Basic static load rating, axial 780000 N
Cr - Basic dynamic load rating, radial (for radial load only) 179000 N
C0r - Basic static load rating, radial (for radial load only) 290000 N
