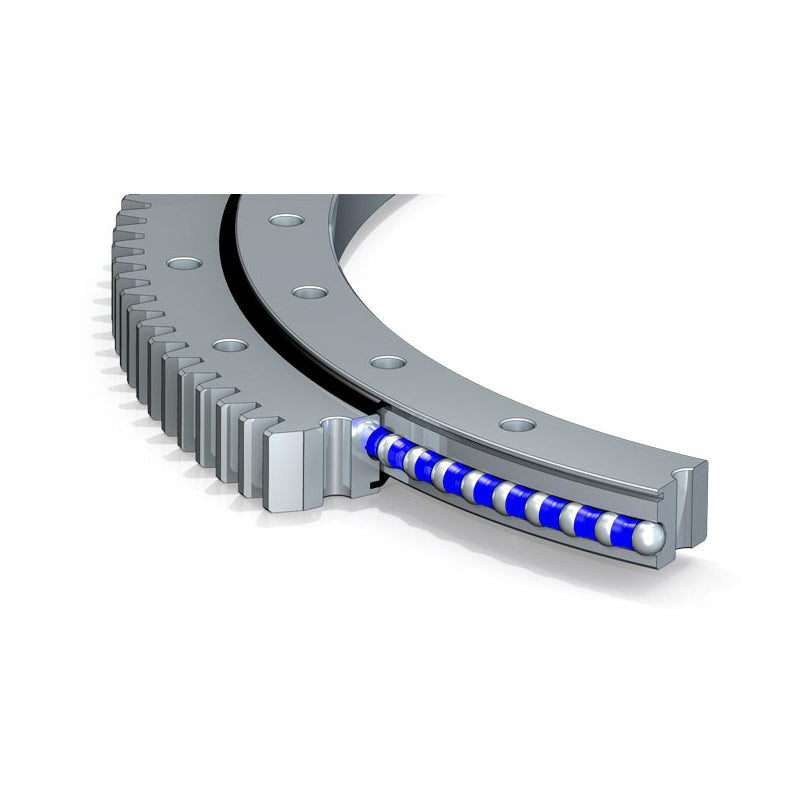

• Major Branded VSA200414N Four Point Contact Slewing Ring Bearing with External Gear 342x503.3x56mm - Allow 2-3 Days
1 1

SKU: VSA200414N-MB

Major Branded VSA200414N Four Point Contact Slewing Ring Bearing with External Gear 342x503.3x56mm - Allow 2-3 Days

Major Branded VSA200414N Four Point Contact Slewing Ring Bearing with External Gear 342x503.3x56mm - Allow 2-3 Days
$1,175.05 ex VAT
$1,175.05 ex VAT
Sale Sold out

In stock

Price Break
3+ $787.08
5+ $742.86
9+ $734.02
19+ $725.18
49+ $716.33
74+ $707.49
99+ $663.27
199+ $654.43
249+ $645.58
499+ $636.74
999+ $619.05

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
342mm
Outside Diameter:
503.3mm
Width:
56mm
Style:
VSA
Technical
--- Main Dimensions & Performance Data
di - Bore Diameter 342mm
Bore diameter upper tolerance 0.5mm
Bore diameter lower tolerance 0mm
H - Height 56mm
Da - Outside Diameter 503.3mm
ha - Width outer ring 44.5mm
hi - Height of inner ring 44.5mm
Weight 31.3 kg
--- Dimensions
Di - Inner diameter outer ring 415.5mm
Inner diameter outer ring upper tolerance 0.5mm
Inner diameter outer ring lower tolerance 0mm
da - Outside diameter inner ring 412.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.5mm
ni - Number of fixing holes in inner ring 24
Li - Pitch circle diameter fixing holes inner ring 368mm
dB - Fixing bore 14mm
na - Number of fixing holes in outer ring 20
La - Pitch circle diameter fixing holes outer ring 455mm
dBa - Tread fixing bore M12
Gl - Thread depth fixing hole 20mm
Fr zul - Max. radial load fixing screws (friction locking) 82600 N
d0 - Pitch circle diameter gearing 495mm
m - Modul of gearing 5mm
z - Number of teeth 99
Profile shift -0.17mm
b - Width gearing 40mm
D - Offset diameter outer ring 480mm
Offset diameter outer ring upper tolerance 0mm
Offset diameter outer ring lower tolerance -0.5mm
Fz norm - Max. tooth force root fatigue strenght (at a shock factor of 1,2) 15900 N
Fz max - Max. tooth force against tooth fracture (at a shock factor of 1,35) 23600 N
--- Temperature Range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation Factors
Ca - Basic dynamic load rating, axial 137000 N
C0a - Basic static load rating, axial 660000 N
Cr - Basic dynamic load rating, radial 124000 N
C0r - Basic static load rating, radial 305000 N
