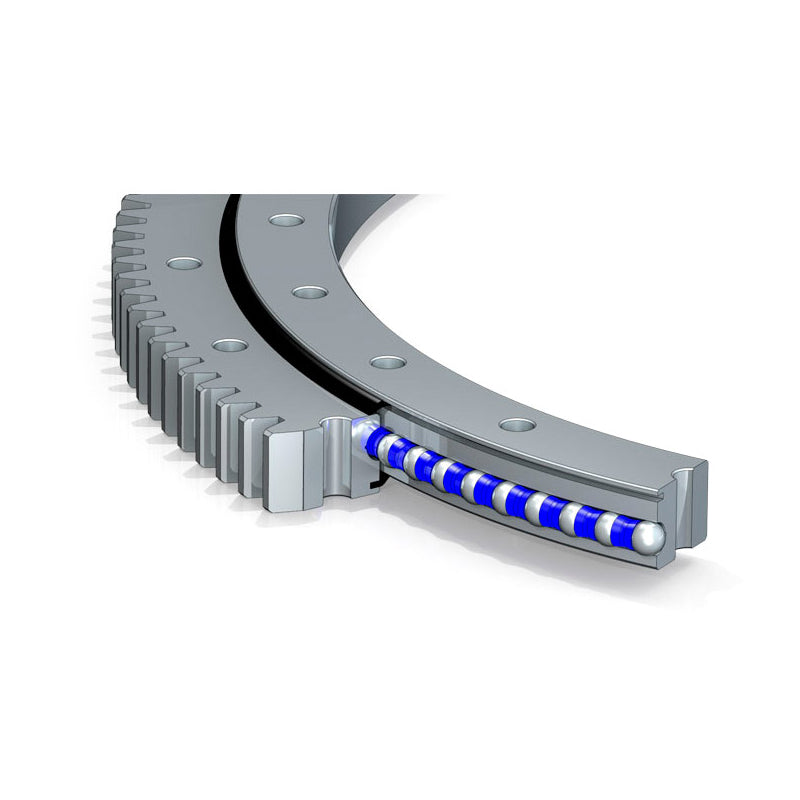

• Major Branded VSA200544N Four Point Contact Slewing Ring Bearing with External Gear 472x640.3x56mm - Allow 2-3 Days
1 1

SKU: VSA200544N-MB

Major Branded VSA200544N Four Point Contact Slewing Ring Bearing with External Gear 472x640.3x56mm - Allow 2-3 Days

Major Branded VSA200544N Four Point Contact Slewing Ring Bearing with External Gear 472x640.3x56mm - Allow 2-3 Days
$1,469.33 ex VAT
$1,469.33 ex VAT
Sale Sold out

In stock

Price Break
3+ $984.20
5+ $928.91
9+ $917.85
19+ $906.79
49+ $895.73
74+ $884.67
99+ $829.38
199+ $818.32
249+ $807.27
499+ $796.21
999+ $774.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
472mm
Outside Diameter:
640.3mm
Width:
56mm
Style:
VSA
Technical
--- Main Dimensions & Performance Data
di - Bore Diameter 472mm
Bore diameter upper tolerance 0.5mm
Bore diameter lower tolerance 0mm
H - Height 56mm
Da - Outside Diameter 640.3mm
ha - Width outer ring 44.5mm
hi - Height of inner ring 44.5mm
Weight 43.215 kg
--- Dimensions
Di - Inner diameter outer ring 545.5mm
Inner diameter outer ring upper tolerance 0.5mm
Inner diameter outer ring lower tolerance 0mm
da - Outside diameter inner ring 542.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.5mm
ni - Number of fixing holes in inner ring 32
Li - Pitch circle diameter fixing holes inner ring 498mm
dB - Fixing bore 14mm
na - Number of fixing holes in outer ring 28
La - Pitch circle diameter fixing holes outer ring 585mm
dBa - Tread fixing bore M12
Gl - Thread depth fixing hole 20mm
Fr zul - Max. radial load fixing screws (friction locking) 115600 N
d0 - Pitch circle diameter gearing 630mm
m - Modul of gearing 6mm
z - Number of teeth 105
Profile shift -0.142mm
Fz norm - Max. tooth force root fatigue strenght (at a shock factor of 1,2) 21300 N
Fz max - Max. tooth force against tooth fracture (at a shock factor of 1,35) 31500 N
--- Temperature Range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation Factors
Ca - Basic dynamic load rating, axial 152000 N
C0a - Basic static load rating, axial 870000 N
Cr - Basic dynamic load rating, radial 138000 N
C0r - Basic static load rating, radial 400000 N
