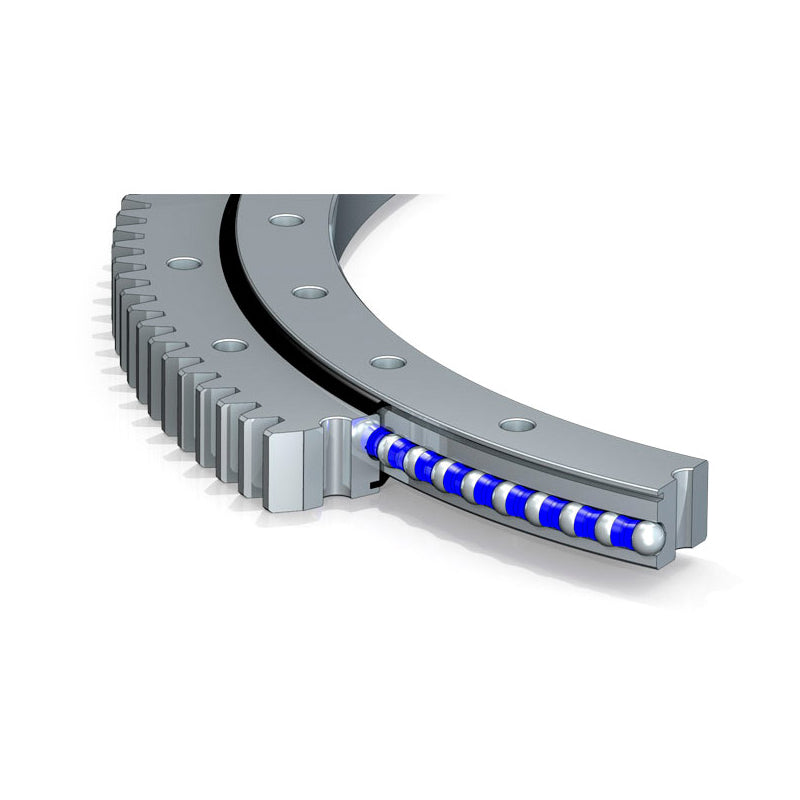

• Major Branded VSA200844N Four Point Contact Slewing Ring Bearing with External Gear 772x950.1x56mm - Allow 2-3 Days
1 1

SKU: VSA200844N-MB

Major Branded VSA200844N Four Point Contact Slewing Ring Bearing with External Gear 772x950.1x56mm - Allow 2-3 Days

Major Branded VSA200844N Four Point Contact Slewing Ring Bearing with External Gear 772x950.1x56mm - Allow 2-3 Days
$2,185.21 ex VAT
$2,185.21 ex VAT
Sale Sold out

In stock

Price Break
3+ $1,463.72
5+ $1,381.49
9+ $1,365.04
19+ $1,348.59
49+ $1,332.15
74+ $1,315.70
99+ $1,233.47
199+ $1,217.02
249+ $1,200.58
499+ $1,184.13
999+ $1,151.24

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
772mm
Outside Diameter:
950.1mm
Width:
56mm
Style:
VSA
Technical
--- Main Dimensions & Performance Data
di - Bore Diameter 772mm
Bore diameter upper tolerance 0.6mm
Bore diameter lower tolerance 0mm
H - Height 56mm
Da - Outside Diameter 950.1mm
ha - Width outer ring 44.5mm
hi - Height of inner ring 44.5mm
Weight 71 kg
--- Dimensions
Di - Inner diameter outer ring 845.5mm
Inner diameter outer ring upper tolerance 0.6mm
Inner diameter outer ring lower tolerance 0mm
da - Outside diameter inner ring 842.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.6mm
ni - Number of fixing holes in inner ring 40
Li - Pitch circle diameter fixing holes inner ring 798mm
dB - Fixing bore 14mm
na - Number of fixing holes in outer ring 36
La - Pitch circle diameter fixing holes outer ring 885mm
dBa - Tread fixing bore M12
Gl - Thread depth fixing hole 20mm
Fr zul - Max. radial load fixing screws (friction locking) 148700 N
d0 - Pitch circle diameter gearing 936mm
m - Modul of gearing 8mm
z - Number of teeth 117
Profile shift -0.119mm
Fz norm - Max. tooth force root fatigue strenght (at a shock factor of 1,2) 28300 N
Fz max - Max. tooth force against tooth fracture (at a shock factor of 1,35) 42000 N
--- Temperature Range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation Factors
Ca - Basic dynamic load rating, axial 180000 N
C0a - Basic static load rating, axial 1360000 N
Cr - Basic dynamic load rating, radial 163000 N
C0r - Basic static load rating, radial 620000 N
