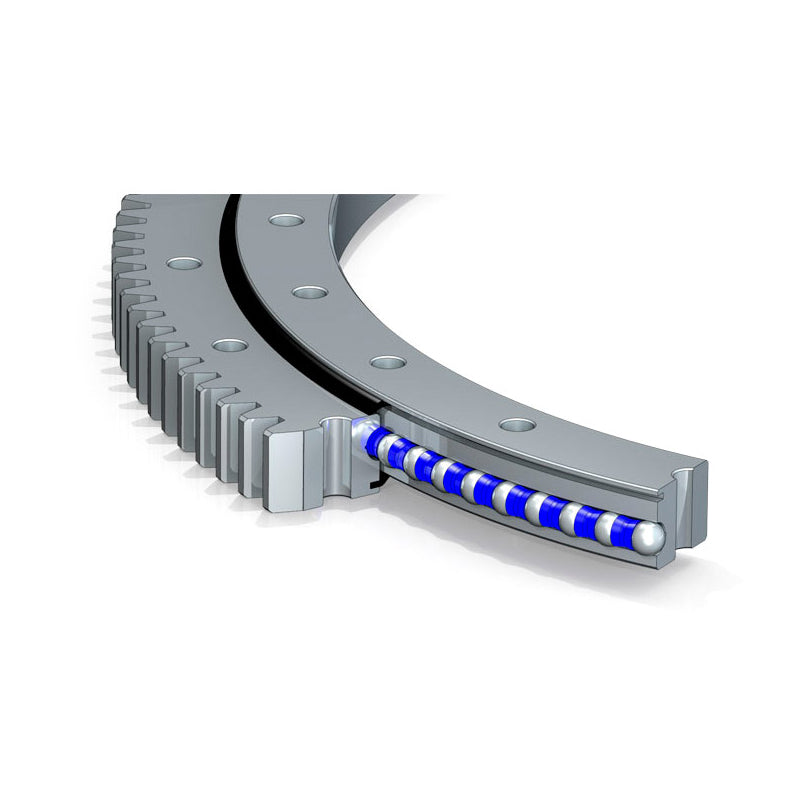

• Major Branded VSA200944N Four Point Contact Slewing Ring Bearing with External Gear 872x1046.1x56mm - Allow 2-3 Days
1 1

SKU: VSA200944N-MB

Major Branded VSA200944N Four Point Contact Slewing Ring Bearing with External Gear 872x1046.1x56mm - Allow 2-3 Days

Major Branded VSA200944N Four Point Contact Slewing Ring Bearing with External Gear 872x1046.1x56mm - Allow 2-3 Days
$2,479.49 ex VAT
$2,479.49 ex VAT
Sale Sold out

In stock

Price Break
3+ $1,660.84
5+ $1,567.53
9+ $1,548.87
19+ $1,530.21
49+ $1,511.55
74+ $1,492.89
99+ $1,399.58
199+ $1,380.92
249+ $1,362.26
499+ $1,343.60
999+ $1,306.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
872mm
Outside Diameter:
1046.1mm
Width:
56mm
Style:
VSA
Technical
--- Main Dimensions & Performance Data
di - Bore Diameter 872mm
Bore diameter upper tolerance 0.7mm
Bore diameter lower tolerance 0mm
H - Height 56mm
Da - Outside Diameter 1046.1mm
ha - Width outer ring 44.5mm
hi - Height of inner ring 44.5mm
Weight 77.23 kg
--- Dimensions
Di - Inner diameter outer ring 945.5mm
Inner diameter outer ring upper tolerance 0.7mm
Inner diameter outer ring lower tolerance 0mm
da - Outside diameter inner ring 942.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.7mm
ni - Number of fixing holes in inner ring 44
Li - Pitch circle diameter fixing holes inner ring 898mm
dB - Fixing bore 14mm
na - Number of fixing holes in outer ring 40
La - Pitch circle diameter fixing holes outer ring 985mm
dBa - Tread fixing bore M12
Gl - Thread depth fixing hole 20mm
Fr zul - Max. radial load fixing screws (friction locking) 165200 N
d0 - Pitch circle diameter gearing 1032mm
m - Modul of gearing 8mm
z - Number of teeth 129
Profile shift -0.119mm
Fz norm - Max. tooth force root fatigue strenght (at a shock factor of 1,2) 28300 N
Fz max - Max. tooth force against tooth fracture (at a shock factor of 1,35) 42000 N
--- Temperature Range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation Factors
Ca - Basic dynamic load rating, axial 188000 N
C0a - Basic static load rating, axial 1520000 N
Cr - Basic dynamic load rating, radial 170000 N
C0r - Basic static load rating, radial 700000 N
