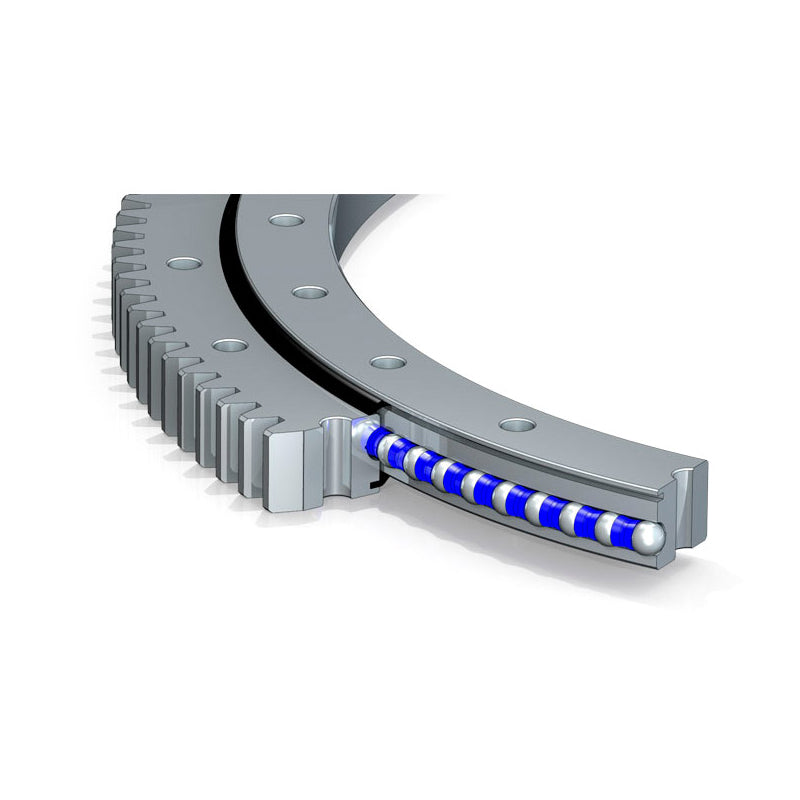

• Major Branded VSA201094N Four Point Contact Slewing Ring Bearing with External Gear 1022x1198.1x56mm - Allow 2-3 Days
1 1

SKU: VSA201094N-MB

Major Branded VSA201094N Four Point Contact Slewing Ring Bearing with External Gear 1022x1198.1x56mm - Allow 2-3 Days

Major Branded VSA201094N Four Point Contact Slewing Ring Bearing with External Gear 1022x1198.1x56mm - Allow 2-3 Days
$2,890.51 ex VAT
$2,890.51 ex VAT
Sale Sold out

In stock

Price Break
3+ $1,936.15
5+ $1,827.37
9+ $1,805.62
19+ $1,783.87
49+ $1,762.11
74+ $1,740.36
99+ $1,631.58
199+ $1,609.83
249+ $1,588.08
499+ $1,566.32
999+ $1,522.81

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
1022mm
Outside Diameter:
1198.1mm
Width:
56mm
Style:
VSA
Technical
--- Main Dimensions & Performance Data
di - Bore Diameter 1022mm
Bore diameter upper tolerance 0.7mm
Bore diameter lower tolerance 0mm
H - Height 56mm
Da - Outside Diameter 1198.1mm
ha - Width outer ring 44.5mm
hi - Height of inner ring 44.5mm
Weight 90.998 kg
--- Dimensions
Di - Inner diameter outer ring 1095.5mm
Inner diameter outer ring upper tolerance 0.7mm
Inner diameter outer ring lower tolerance 0mm
da - Outside diameter inner ring 1092.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.7mm
ni - Number of fixing holes in inner ring 48
Li - Pitch circle diameter fixing holes inner ring 1048mm
dB - Fixing bore 14mm
na - Number of fixing holes in outer ring 44
La - Pitch circle diameter fixing holes outer ring 1135mm
dBa - Tread fixing bore M12
Gl - Thread depth fixing hole 20mm
Fr zul - Max. radial load fixing screws (friction locking) 181700 N
d0 - Pitch circle diameter gearing 1184mm
m - Modul of gearing 8mm
z - Number of teeth 148
Profile shift -0.119mm
Fz norm - Max. tooth force root fatigue strenght (at a shock factor of 1,2) 28300 N
Fz max - Max. tooth force against tooth fracture (at a shock factor of 1,35) 42000 N
--- Temperature Range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation Factors
Ca - Basic dynamic load rating, axial 198000 N
C0a - Basic static load rating, axial 1770000 N
Cr - Basic dynamic load rating, radial 179000 N
C0r - Basic static load rating, radial 810000 N
