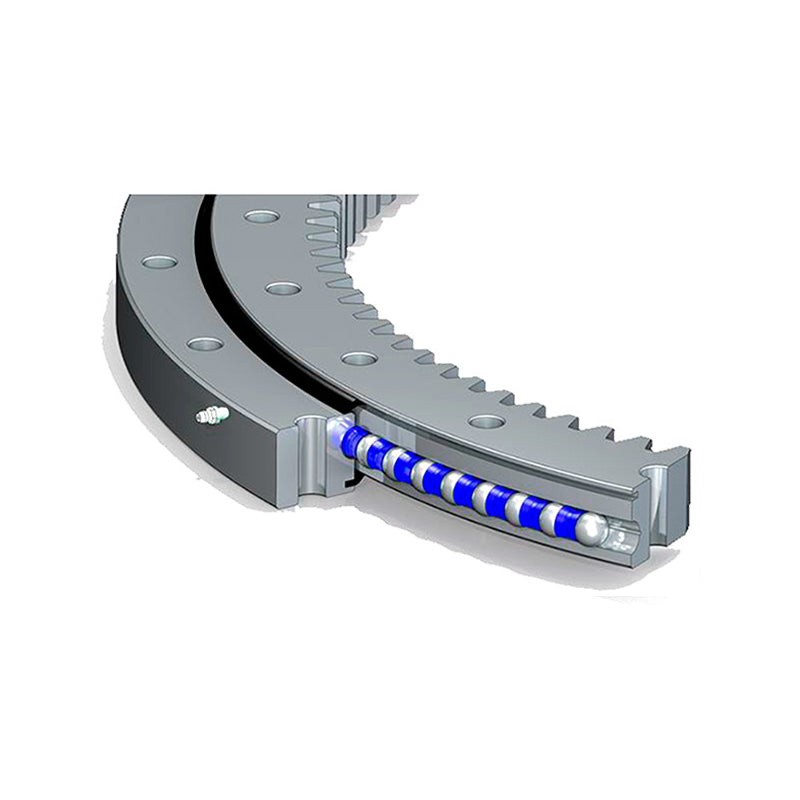

• Major Branded VSI200544N Four Point Contact Slewing Ring Bearing with Internal Gear 444x616x56mm - Allow 2-3 Days
1 1

SKU: VSI200544N-MB

Major Branded VSI200544N Four Point Contact Slewing Ring Bearing with Internal Gear 444x616x56mm - Allow 2-3 Days

Major Branded VSI200544N Four Point Contact Slewing Ring Bearing with Internal Gear 444x616x56mm - Allow 2-3 Days
$1,362.88 ex VAT
$1,362.88 ex VAT
Sale Sold out

In stock

Price Break
3+ $912.90
5+ $861.62
9+ $851.36
19+ $841.10
49+ $830.84
74+ $820.59
99+ $769.30
199+ $759.04
249+ $748.78
499+ $738.53
999+ $718.01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
444mm
Outside Diameter:
616mm
Width:
56mm
Style:
VSI
Technical
--- Main Dimensions & Performance Data
d1 - Bore Diameter 444mm
T - Length centering inner ring 4.5mm
H - Height 56mm
Da - Outside Diameter 616mm
Outside diameter lower tolerance -0.5mm
Outside diameter upper tolerance 0mm
ha - Width outer ring 44.5mm
hi - Width inner ring 44.5mm
Weight 41.3 kg
--- Dimensions
Di - Inner diameter outer ring 545.5mm
Inner diameter outer ring upper tolerance 0.5mm
Inner diameter outer ring lower tolerance 0mm
La - Pitch circle diameter fixing holes outer ring 590mm
na - Number of fixing holes in outer ring 32
dB - Fixing bore 14mm
da - Outside diameter inner ring 542.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.5mm
Li - Pitch circle diameter fixing holes inner ring 505mm
dBi - Tread fixing bore M12
Gl - Thread depth fixing hole 20mm
ni - Number of fixing holes in inner ring 32
Fr zul - Max. radial load fixing screws (friction locking) 132200 N
m - Modul of gearing 6mm
z - Number of teeth 76
d0 - Pitch circle diameter gearing 456mm
Fz norm - Max. tooth force root fatigue strenght (at a shock factor of 1,2) 23700 N
Fz max - Max. tooth force against tooth fracture (at a shock factor of 1,35) 35000 N
--- Temperature range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation factors
Ca - Basic dynamic load rating, axial 152000 N
C0a - Basic static load rating, axial 870000 N
Cr - Basic dynamic load rating, radial 138000 N
C0r - Basic static load rating, radial 400000 N
