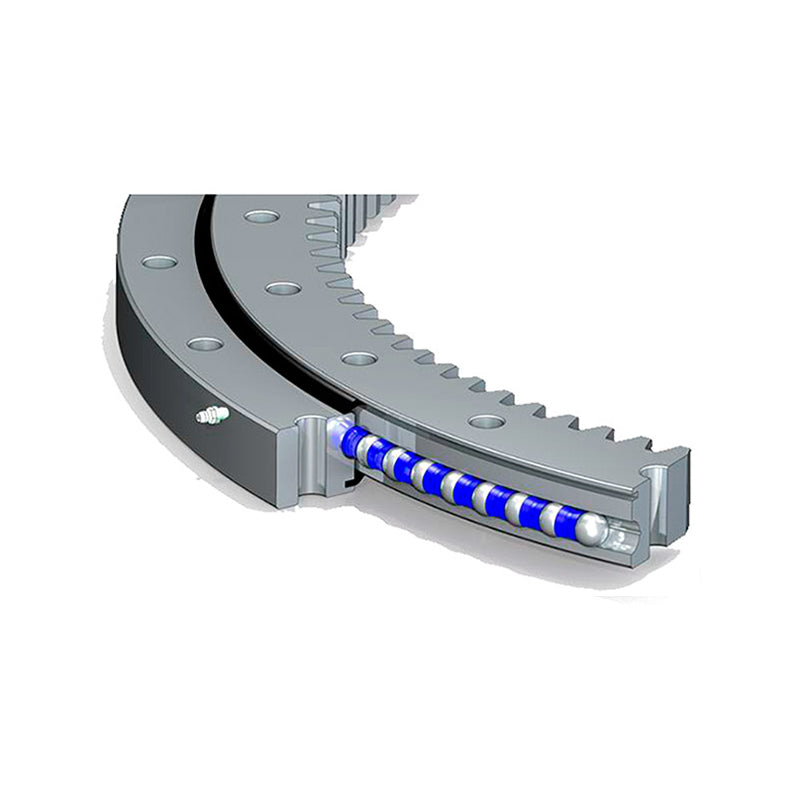

• Major Branded VSI200744N Four Point Contact Slewing Ring Bearing with Internal Gear 648x816x56mm - Allow 2-3 Days
1 1

SKU: VSI200744N-MB

Major Branded VSI200744N Four Point Contact Slewing Ring Bearing with Internal Gear 648x816x56mm - Allow 2-3 Days

Major Branded VSI200744N Four Point Contact Slewing Ring Bearing with Internal Gear 648x816x56mm - Allow 2-3 Days
$1,909.71 ex VAT
$1,909.71 ex VAT
Sale Sold out

In stock

Price Break
3+ $1,279.18
5+ $1,207.32
9+ $1,192.94
19+ $1,178.57
49+ $1,164.20
74+ $1,149.83
99+ $1,077.96
199+ $1,063.59
249+ $1,049.22
499+ $1,034.84
999+ $1,006.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
648mm
Outside Diameter:
816mm
Width:
56mm
Style:
VSI
Technical
--- Main Dimensions & Performance Data
d1 - Bore Diameter 648mm
T - Length centering inner ring 4.5mm
H - Height 56mm
Da - Outside Diameter 816mm
Outside diameter lower tolerance -0.6mm
Outside diameter upper tolerance 0mm
ha - Width outer ring 44.5mm
hi - Width inner ring 44.5mm
Weight 58.3 kg
--- Dimensions
Di - Inner diameter outer ring 745.5mm
Inner diameter outer ring upper tolerance 0.6mm
Inner diameter outer ring lower tolerance 0mm
La - Pitch circle diameter fixing holes outer ring 790mm
na - Number of fixing holes in outer ring 40
dB - Fixing bore 14mm
da - Outside diameter inner ring 742.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.6mm
Li - Pitch circle diameter fixing holes inner ring 705mm
dBi - Tread fixing bore M12
Gl - Thread depth fixing hole 20mm
ni - Number of fixing holes in inner ring 40
Fr zul - Max. radial load fixing screws (friction locking) 165200 N
m - Modul of gearing 6mm
z - Number of teeth 110
d0 - Pitch circle diameter gearing 660mm
Fz norm - Max. tooth force root fatigue strenght (at a shock factor of 1,2) 23700 N
Fz max - Max. tooth force against tooth fracture (at a shock factor of 1,35) 35000 N
--- Temperature range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation factors
Ca - Basic dynamic load rating, axial 171000 N
C0a - Basic static load rating, axial 1200000 N
Cr - Basic dynamic load rating, radial 155000 N
C0r - Basic static load rating, radial 550000 N
