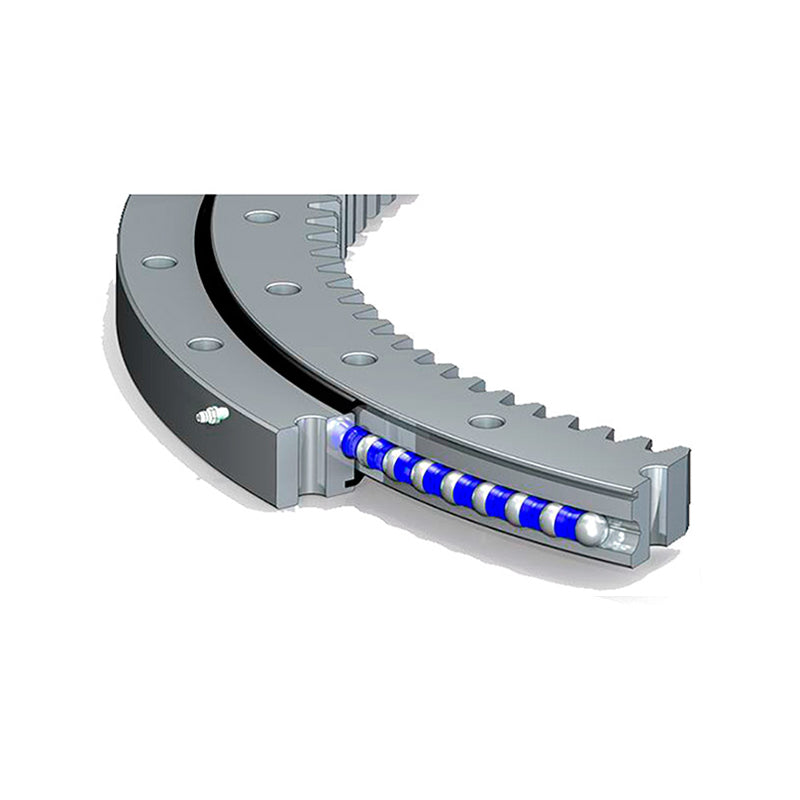

• Major Branded VSI200944N Four Point Contact Slewing Ring Bearing with Internal Gear 840x1016x56mm - Allow 2-3 Days
1 1

SKU: VSI200944N-MB

Major Branded VSI200944N Four Point Contact Slewing Ring Bearing with Internal Gear 840x1016x56mm - Allow 2-3 Days

Major Branded VSI200944N Four Point Contact Slewing Ring Bearing with Internal Gear 840x1016x56mm - Allow 2-3 Days
$2,565.45 ex VAT
$2,565.45 ex VAT
Sale Sold out

In stock

Price Break
3+ $1,718.42
5+ $1,621.88
9+ $1,602.57
19+ $1,583.26
49+ $1,563.95
74+ $1,544.64
99+ $1,448.10
199+ $1,428.80
249+ $1,409.49
499+ $1,390.18
999+ $1,351.56

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
840mm
Outside Diameter:
1016mm
Width:
56mm
Style:
VSI
Technical
--- Main Dimensions & Performance Data
d1 - Bore Diameter 840mm
T - Length centering inner ring 4.5mm
H - Height 56mm
Da - Outside Diameter 1016mm
Outside diameter lower tolerance -0.7mm
Outside diameter upper tolerance 0mm
ha - Width outer ring 44.5mm
hi - Width inner ring 44.5mm
Weight 76 kg
--- Dimensions
Di - Inner diameter outer ring 945.5mm
Inner diameter outer ring upper tolerance 0.7mm
Inner diameter outer ring lower tolerance 0mm
La - Pitch circle diameter fixing holes outer ring 990mm
na - Number of fixing holes in outer ring 44
dB - Fixing bore 14mm
da - Outside diameter inner ring 942.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.7mm
Li - Pitch circle diameter fixing holes inner ring 905mm
dBi - Tread fixing bore M12
Gl - Thread depth fixing hole 20mm
ni - Number of fixing holes in inner ring 44
Fr zul - Max. radial load fixing screws (friction locking) 181700 N
m - Modul of gearing 8mm
z - Number of teeth 107
d0 - Pitch circle diameter gearing 856mm
Fz norm - Max. tooth force root fatigue strenght (at a shock factor of 1,2) 31400 N
Fz max - Max. tooth force against tooth fracture (at a shock factor of 1,35) 46700 N
--- Temperature range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation factors
Ca - Basic dynamic load rating, axial 188000 N
C0a - Basic static load rating, axial 1520000 N
Cr - Basic dynamic load rating, radial 170000 N
C0r - Basic static load rating, radial 700000 N
