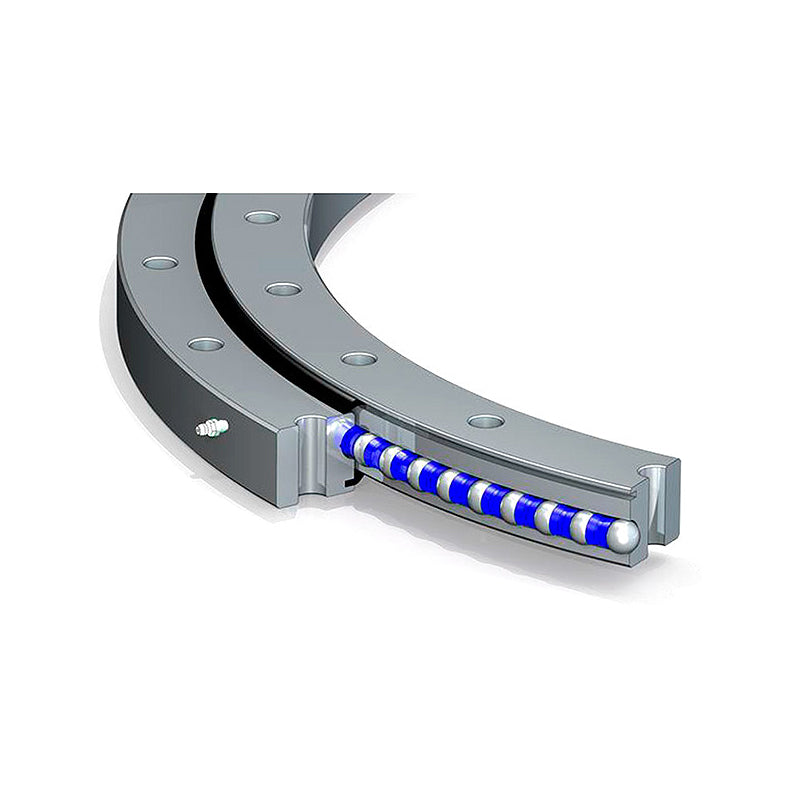

• Major Branded VSU200414 Four Point Contact Slewing Ring Bearing 342x486x56mm - Allow 2-3 Days
1 1

SKU: VSU200414-MB

Major Branded VSU200414 Four Point Contact Slewing Ring Bearing 342x486x56mm - Allow 2-3 Days

Major Branded VSU200414 Four Point Contact Slewing Ring Bearing 342x486x56mm - Allow 2-3 Days
$1,124.95 ex VAT
$1,124.95 ex VAT
Sale Sold out

In stock

Price Break
3+ $753.53
5+ $711.20
9+ $702.73
19+ $694.26
49+ $685.80
74+ $677.33
99+ $635.00
199+ $626.53
249+ $618.06
499+ $609.60
999+ $592.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
342mm
Outside Diameter:
486mm
Width:
56mm
Style:
VSU
Technical
--- Main Dimensions & Performance Data
di - Inner diameter inner ring 342mm
Inner diameter inner ring lower tolerance 0mm
Inner diameter inner ring upper tolerance 0.5mm
H - Height 56mm
Da - Outside Diameter 486mm
Outside diameter lower tolerance -0.5mm
Outside diameter upper tolerance 0mm
ha - Width outer ring 44.5mm
hi - Width inner ring 44.5mm
Weight 27.71 kg
--- Dimensions
Di - Inner diameter outer ring 415.5mm
Inner diameter outer ring upper tolerance 0.5mm
Inner diameter outer ring lower tolerance 0mm
da - Outside diameter inner ring 412.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.5mm
dB - Fixing bore 14mm
La - Pitchcircle diameter fixing holes outer ring 460mm
na - Number of fixing holes in outer ring 24
Li - Pitch circle diameter fixing holes inner ring 368mm
ni - Number of fixing holes in inner ring 24
Fr zul - Max. radial load fixing screws (friction locking) 99100 N
--- Temperature Range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation Factors
Ca - Basic dynamic load rating, axial 137000 N
C0a - Basic static load rating, axial 660000 N
Cr - Basic dynamic load rating, radial (for radial load only) 124000 N
C0r - Basic static load rating, radial (for radial load only) 305000 N
