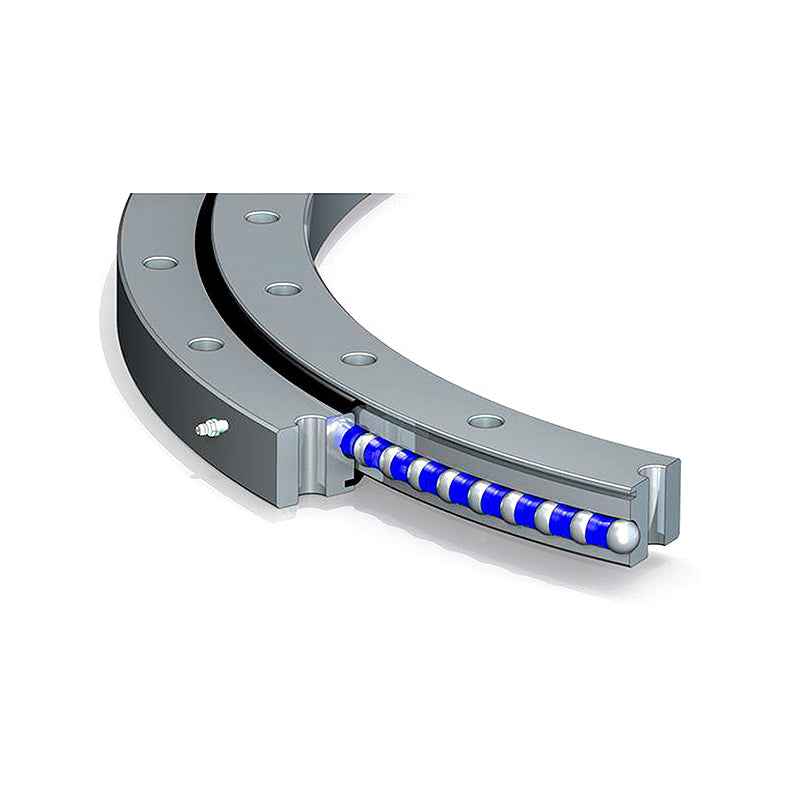

• Major Branded VSU200544 Four Point Contact Slewing Ring Bearing 472x616x56mm - Allow 2-3 Days
1 1

SKU: VSU200544-MB

Major Branded VSU200544 Four Point Contact Slewing Ring Bearing 472x616x56mm - Allow 2-3 Days

Major Branded VSU200544 Four Point Contact Slewing Ring Bearing 472x616x56mm - Allow 2-3 Days
$1,266.89 ex VAT
$1,266.89 ex VAT
Sale Sold out

In stock

Price Break
3+ $848.59
5+ $800.92
9+ $791.38
19+ $781.85
49+ $772.32
74+ $762.78
99+ $715.11
199+ $705.57
249+ $696.04
499+ $686.50
999+ $667.43

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
472mm
Outside Diameter:
616mm
Width:
56mm
Style:
VSU
Technical
--- Main Dimensions & Performance Data
di - Inner diameter inner ring 472mm
Inner diameter inner ring lower tolerance 0mm
Inner diameter inner ring upper tolerance 0.5mm
H - Height 56mm
Da - Outside Diameter 616mm
Outside diameter lower tolerance -0.5mm
Outside diameter upper tolerance 0mm
T - Length centering outer ring 10mm
t - Length centering inner ring 10mm
ha - Width outer ring 44.5mm
hi - Width inner ring 44.5mm
Weight 37.41 kg
--- Dimensions
Di - Inner diameter outer ring 545.5mm
Inner diameter outer ring upper tolerance 0.5mm
Inner diameter outer ring lower tolerance 0mm
da - Outside diameter inner ring 542.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.5mm
dB - Fixing bore 14mm
La - Pitchcircle diameter fixing holes outer ring 590mm
na - Number of fixing holes in outer ring 32
Li - Pitch circle diameter fixing holes inner ring 498mm
ni - Number of fixing holes in inner ring 32
Fr zul - Max. radial load fixing screws (friction locking) 132200 N
--- Temperature Range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation Factors
Ca - Basic dynamic load rating, axial 152000 N
C0a - Basic static load rating, axial 870000 N
Cr - Basic dynamic load rating, radial (for radial load only) 138000 N
C0r - Basic static load rating, radial (for radial load only) 400000 N
