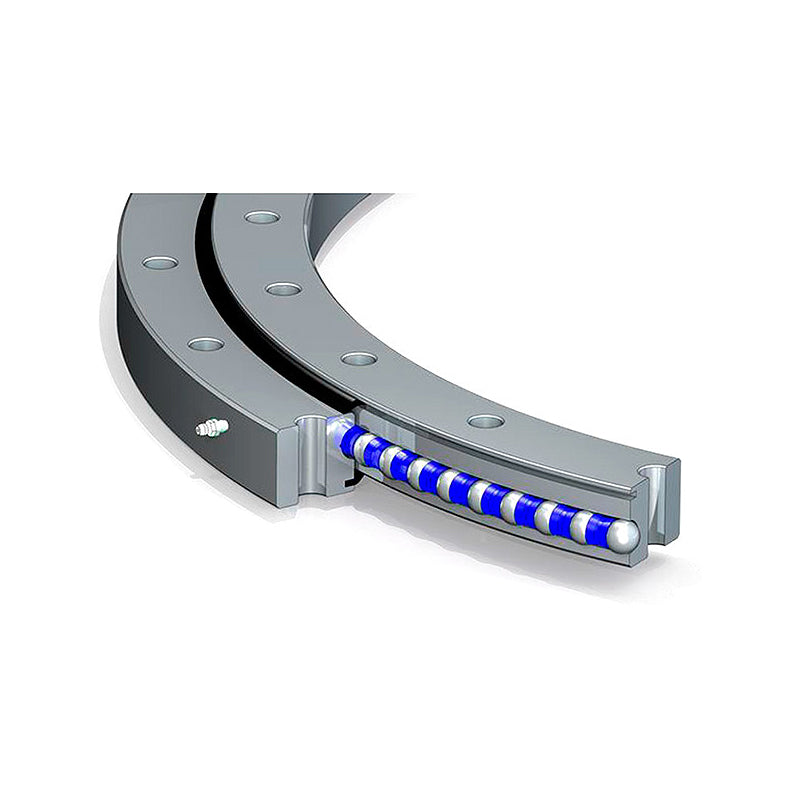

• Major Branded VSU200644 Four Point Contact Slewing Ring Bearing 572x716x56mm - Allow 2-3 Days
1 1

SKU: VSU200644-MB

Major Branded VSU200644 Four Point Contact Slewing Ring Bearing 572x716x56mm - Allow 2-3 Days

Major Branded VSU200644 Four Point Contact Slewing Ring Bearing 572x716x56mm - Allow 2-3 Days
$1,561.17 ex VAT
$1,561.17 ex VAT
Sale Sold out

In stock

Price Break
3+ $1,045.71
5+ $986.97
9+ $975.22
19+ $963.47
49+ $951.72
74+ $939.97
99+ $881.22
199+ $869.47
249+ $857.72
499+ $845.97
999+ $822.47

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
572mm
Outside Diameter:
716mm
Width:
56mm
Style:
VSU
Technical
--- Main Dimensions & Performance Data
di - Inner diameter inner ring 572mm
Inner diameter inner ring lower tolerance 0mm
Inner diameter inner ring upper tolerance 0.6mm
H - Height 56mm
Da - Outside Diameter 716mm
Outside diameter lower tolerance -0.6mm
Outside diameter upper tolerance 0mm
ha - Width outer ring 44.5mm
hi - Width inner ring 44.5mm
Weight 44.41 kg
--- Dimensions
Di - Inner diameter outer ring 645.5mm
Inner diameter outer ring upper tolerance 0.6mm
Inner diameter outer ring lower tolerance 0mm
da - Outside diameter inner ring 642.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.6mm
dB - Fixing bore 14mm
La - Pitchcircle diameter fixing holes outer ring 690mm
na - Number of fixing holes in outer ring 36
Li - Pitch circle diameter fixing holes inner ring 598mm
ni - Number of fixing holes in inner ring 36
Fr zul - Max. radial load fixing screws (friction locking) 148700 N
--- Temperature Range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation Factors
Ca - Basic dynamic load rating, axial 162000 N
C0a - Basic static load rating, axial 1040000 N
Cr - Basic dynamic load rating, radial (for radial load only) 147000 N
C0r - Basic static load rating, radial (for radial load only) 475000 N
