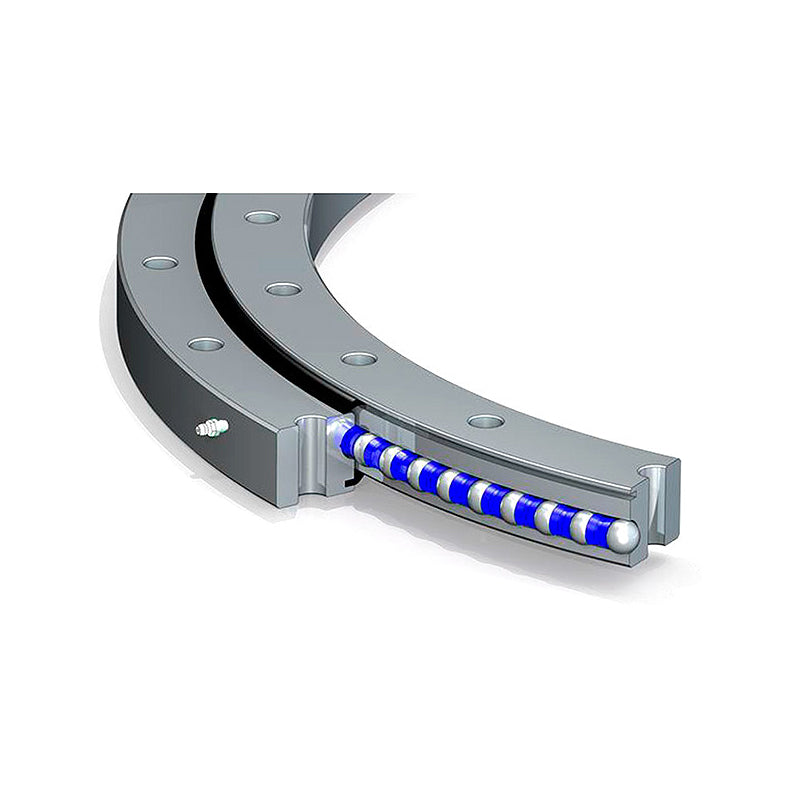

• Major Branded VSU200744 Four Point Contact Slewing Ring Bearing 672x816x56mm - Allow 2-3 Days
1 1

SKU: VSU200744-MB

Major Branded VSU200744 Four Point Contact Slewing Ring Bearing 672x816x56mm - Allow 2-3 Days

Major Branded VSU200744 Four Point Contact Slewing Ring Bearing 672x816x56mm - Allow 2-3 Days
$1,822.06 ex VAT
$1,822.06 ex VAT
Sale Sold out

In stock

Price Break
3+ $1,220.46
5+ $1,151.90
9+ $1,138.19
19+ $1,124.47
49+ $1,110.76
74+ $1,097.05
99+ $1,028.48
199+ $1,014.77
249+ $1,001.06
499+ $987.34
999+ $959.92

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
672mm
Outside Diameter:
816mm
Width:
56mm
Style:
VSU
Technical
--- Main Dimensions & Performance Data
di - Inner diameter inner ring 672mm
Inner diameter inner ring lower tolerance 0mm
Inner diameter inner ring upper tolerance 0.6mm
H - Height 56mm
Da - Outside Diameter 816mm
Outside diameter lower tolerance -0.6mm
Outside diameter upper tolerance 0mm
ha - Width outer ring 44.5mm
hi - Width inner ring 44.5mm
Weight 52.02 kg
--- Dimensions
Di - Inner diameter outer ring 745.5mm
Inner diameter outer ring upper tolerance 0.6mm
Inner diameter outer ring lower tolerance 0mm
da - Outside diameter inner ring 742.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.6mm
dB - Fixing bore 14mm
La - Pitchcircle diameter fixing holes outer ring 790mm
na - Number of fixing holes in outer ring 40
Li - Pitch circle diameter fixing holes inner ring 698mm
ni - Number of fixing holes in inner ring 40
Fr zul - Max. radial load fixing screws (friction locking) 165200 N
--- Temperature Range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation Factors
Ca - Basic dynamic load rating, axial 171000 N
C0a - Basic static load rating, axial 1200000 N
Cr - Basic dynamic load rating, radial (for radial load only) 155000 N
C0r - Basic static load rating, radial (for radial load only) 550000 N
