• Major Branded VSU200844 Four Point Contact Slewing Ring Bearing 772x916x56mm - Allow 2-3 Days
1 1

SKU: VSU200844-MB

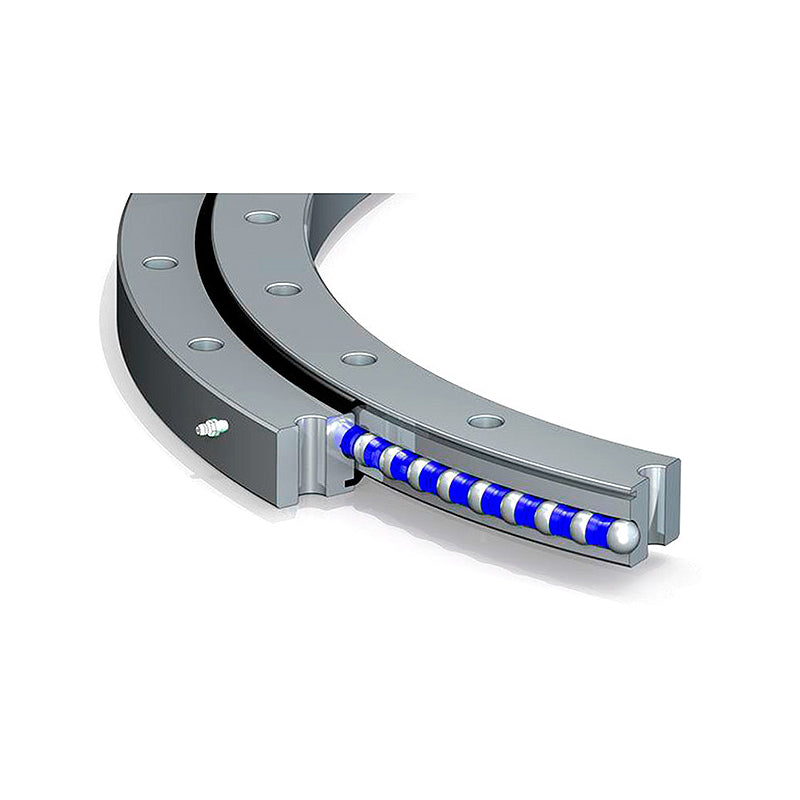

Major Branded VSU200844 Four Point Contact Slewing Ring Bearing 772x916x56mm - Allow 2-3 Days

Major Branded VSU200844 Four Point Contact Slewing Ring Bearing 772x916x56mm - Allow 2-3 Days
$2,158.08 ex VAT
$2,158.08 ex VAT
Sale Sold out

In stock

Price Break
3+ $1,445.54
5+ $1,364.33
9+ $1,348.09
19+ $1,331.85
49+ $1,315.61
74+ $1,299.37
99+ $1,218.16
199+ $1,201.91
249+ $1,185.67
499+ $1,169.43
999+ $1,136.95

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
772mm
Outside Diameter:
916mm
Width:
56mm
Style:
VSU
Technical
--- Main Dimensions & Performance Data
di - Inner diameter inner ring 772mm
Inner diameter inner ring lower tolerance 0mm
Inner diameter inner ring upper tolerance 0.6mm
H - Height 56mm
Da - Outside Diameter 916mm
Outside diameter lower tolerance -0.6mm
Outside diameter upper tolerance 0mm
ha - Width outer ring 44.5mm
hi - Width inner ring 44.5mm
Weight 60 kg
--- Dimensions
Di - Inner diameter outer ring 845.5mm
Inner diameter outer ring upper tolerance 0.6mm
Inner diameter outer ring lower tolerance 0mm
da - Outside diameter inner ring 842.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.6mm
dB - Fixing bore 14mm
La - Pitchcircle diameter fixing holes outer ring 890mm
na - Number of fixing holes in outer ring 40
Li - Pitch circle diameter fixing holes inner ring 798mm
ni - Number of fixing holes in inner ring 40
Fr zul - Max. radial load fixing screws (friction locking) 165200 N
--- Temperature Range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation Factors
Ca - Basic dynamic load rating, axial 180000 N
C0a - Basic static load rating, axial 1360000 N
Cr - Basic dynamic load rating, radial (for radial load only) 163000 N
C0r - Basic static load rating, radial (for radial load only) 620000 N
