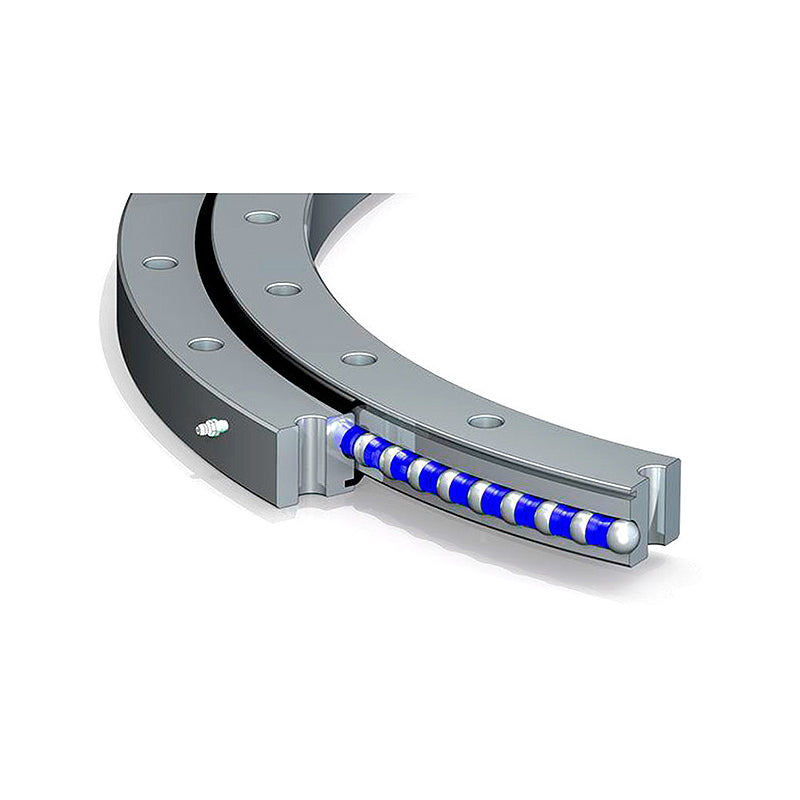

• Major Branded VSU200944 Four Point Contact Slewing Ring Bearing 872x1016x56mm - Allow 2-3 Days
1 1

SKU: VSU200944-MB

Major Branded VSU200944 Four Point Contact Slewing Ring Bearing 872x1016x56mm - Allow 2-3 Days

Major Branded VSU200944 Four Point Contact Slewing Ring Bearing 872x1016x56mm - Allow 2-3 Days
$2,341.75 ex VAT
$2,341.75 ex VAT
Sale Sold out

In stock

Price Break
3+ $1,568.57
5+ $1,480.45
9+ $1,462.82
19+ $1,445.20
49+ $1,427.57
74+ $1,409.95
99+ $1,321.83
199+ $1,304.20
249+ $1,286.58
499+ $1,268.96
999+ $1,233.71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
872mm
Outside Diameter:
1016mm
Width:
56mm
Style:
VSU
Technical
--- Main Dimensions & Performance Data
di - Inner diameter inner ring 872mm
Inner diameter inner ring lower tolerance 0mm
Inner diameter inner ring upper tolerance 0.7mm
H - Height 56mm
Da - Outside Diameter 1016mm
Outside diameter lower tolerance -0.7mm
Outside diameter upper tolerance 0mm
ha - Width outer ring 44.5mm
hi - Width inner ring 44.5mm
Weight 67 kg
--- Dimensions
Di - Inner diameter outer ring 945.5mm
Inner diameter outer ring upper tolerance 0.7mm
Inner diameter outer ring lower tolerance 0mm
da - Outside diameter inner ring 942.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.7mm
dB - Fixing bore 14mm
La - Pitchcircle diameter fixing holes outer ring 990mm
na - Number of fixing holes in outer ring 44
Li - Pitch circle diameter fixing holes inner ring 898mm
ni - Number of fixing holes in inner ring 44
Fr zul - Max. radial load fixing screws (friction locking) 181700 N
--- Temperature Range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation Factors
Ca - Basic dynamic load rating, axial 188000 N
C0a - Basic static load rating, axial 1520000 N
Cr - Basic dynamic load rating, radial (for radial load only) 170000 N
C0r - Basic static load rating, radial (for radial load only) 700000 N
