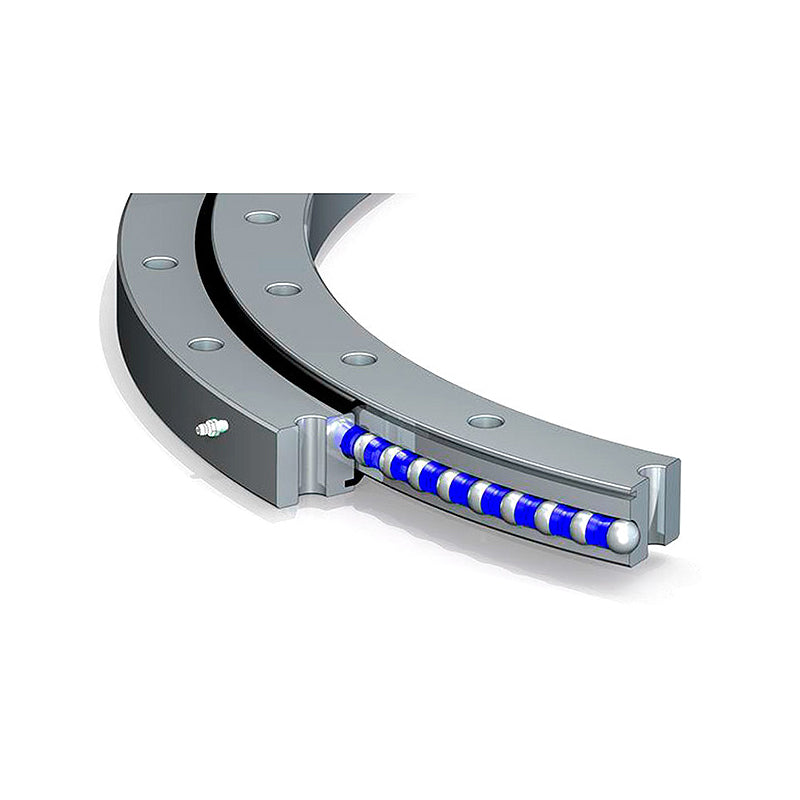

• Major Branded VSU201094 Four Point Contact Slewing Ring Bearing 1022x1166x56mm - Allow 2-3 Days
1 1

SKU: VSU201094-MB

Major Branded VSU201094 Four Point Contact Slewing Ring Bearing 1022x1166x56mm - Allow 2-3 Days

Major Branded VSU201094 Four Point Contact Slewing Ring Bearing 1022x1166x56mm - Allow 2-3 Days
$2,670.37 ex VAT
$2,670.37 ex VAT
Sale Sold out

In stock

Price Break
3+ $1,788.70
5+ $1,688.21
9+ $1,668.11
19+ $1,648.01
49+ $1,627.91
74+ $1,607.82
99+ $1,507.33
199+ $1,487.23
249+ $1,467.13
499+ $1,447.04
999+ $1,406.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
1022mm
Outside Diameter:
1166mm
Width:
56mm
Style:
VSU
Technical
--- Main Dimensions & Performance Data
di - Inner diameter inner ring 1022mm
Inner diameter inner ring lower tolerance 0mm
Inner diameter inner ring upper tolerance 0.7mm
H - Height 56mm
Da - Outside Diameter 1166mm
Outside diameter lower tolerance -0.7mm
Outside diameter upper tolerance 0mm
ha - Width outer ring 44.5mm
hi - Width inner ring 44.5mm
Weight 77 kg
--- Dimensions
Di - Inner diameter outer ring 1095.5mm
Inner diameter outer ring upper tolerance 0.7mm
Inner diameter outer ring lower tolerance 0mm
da - Outside diameter inner ring 1092.5mm
Outside diameter inner ring upper tolerance 0mm
Outside diameter inner ring lower tolerance -0.7mm
dB - Fixing bore 14mm
La - Pitchcircle diameter fixing holes outer ring 1140mm
na - Number of fixing holes in outer ring 48
Li - Pitch circle diameter fixing holes inner ring 1048mm
ni - Number of fixing holes in inner ring 48
Fr zul - Max. radial load fixing screws (friction locking) 198200 N
--- Temperature Range
Tmin - Operating temperature min. -25 Deg C
Tmax - Operating temperature max. 80 Deg C
--- Calculation Factors
Ca - Basic dynamic load rating, axial 198000 N
C0a - Basic static load rating, axial 1770000 N
Cr - Basic dynamic load rating, radial (for radial load only) 179000 N
C0r - Basic static load rating, radial (for radial load only) 810000 N
