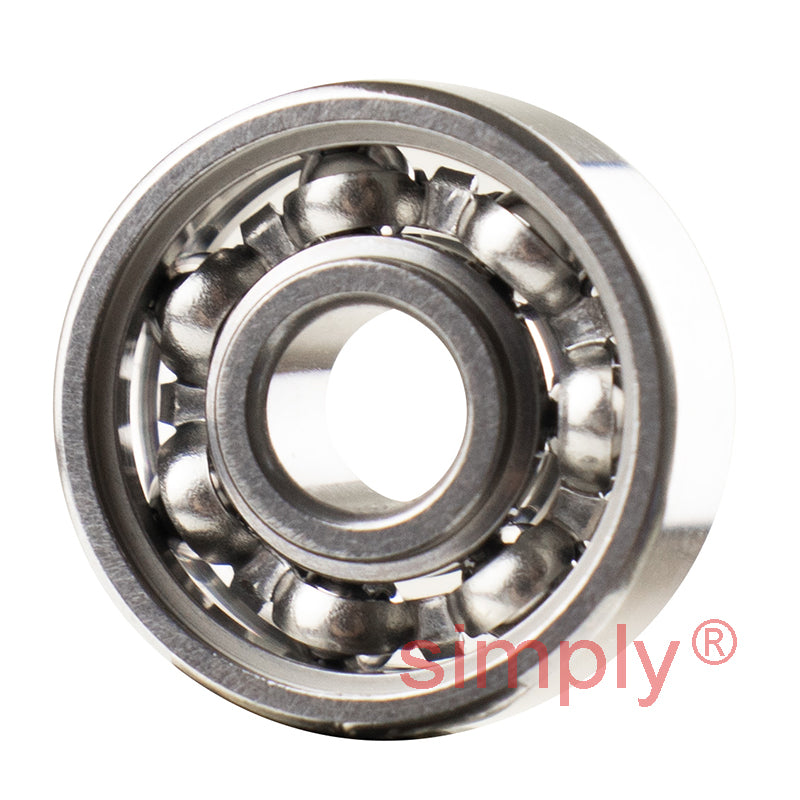

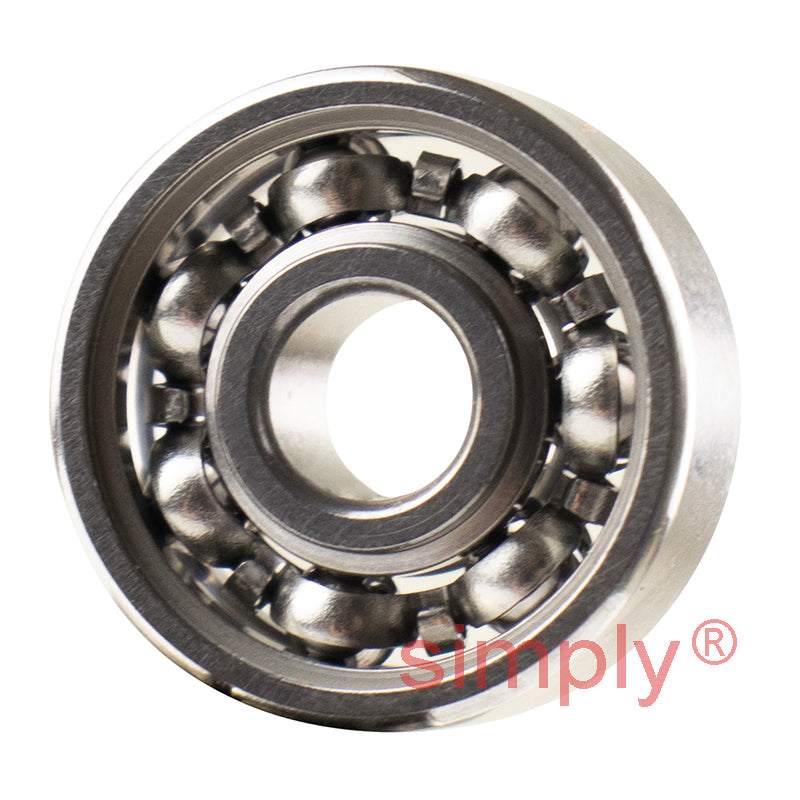

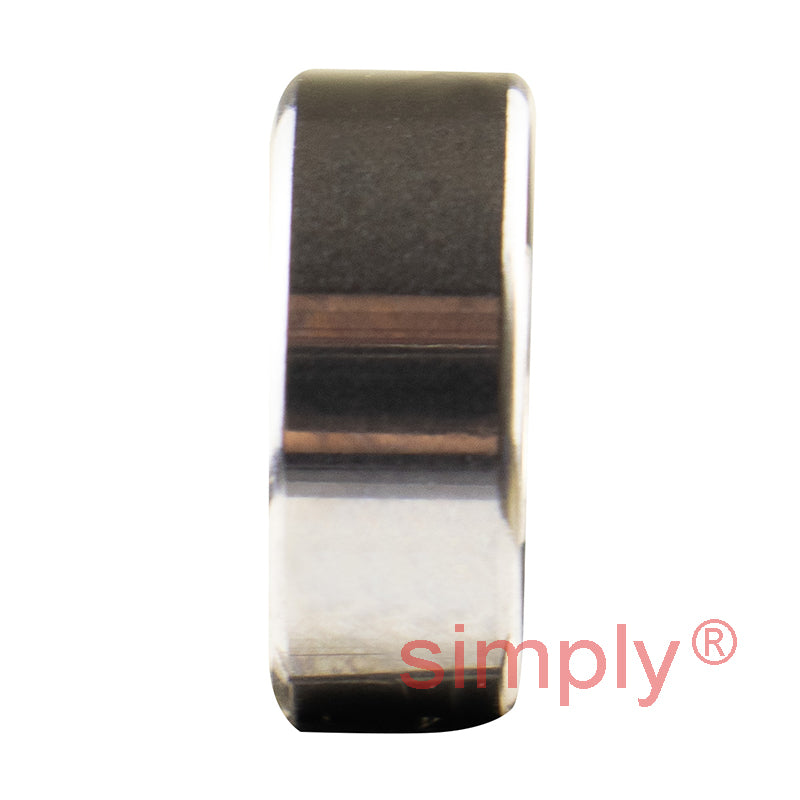

• EZO W624 Stainless Steel Deep Groove Ball Bearing Open Type 4x13x5mm
  • EZO W624 Stainless Steel Deep Groove Ball Bearing Open Type 4x13x5mm
  • EZO W624 Stainless Steel Deep Groove Ball Bearing Open Type 4x13x5mm
  • EZO
1 4

SKU: W624-EZO

EZO W624 Stainless Steel Deep Groove Ball Bearing Open Type 4x13x5mm

EZO W624 Stainless Steel Deep Groove Ball Bearing Open Type 4x13x5mm
$10.67 ex VAT
$10.67 ex VAT
Sale Sold out

Equivalent to: SS624

In stock

Price Break
10+ $7.15
19+ $6.75
29+ $6.67
39+ $6.59
49+ $6.51
74+ $6.43
99+ $6.02
199+ $5.94
249+ $5.86
499+ $5.78
999+ $5.62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EZO - High Quality
Inside Diameter:
4mm
Outside Diameter:
13mm
Width:
5mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 4mm
D 13mm
B 5mm
Dynamic load C 0.793 kN
Static load Co 0.28 kN
Fatigue load limit Pu 0.012 kN
Reference speed 110000 rpm
Limiting speed 67000 rpm
Weight 0.0031 kg
d1 7mm
D1 10.5mm
r1r2 min 0.2mm
da min 5.8mm
Da max 11.2mm
ra max 0.2mm
Calculation factor kr 0.025
Calculation factor f0 7.7
